Eddisons Asset Auctions is pleased to be selling a ZVH60/L6000 Multi-process Machining Centre, which CNC expert Antony Reed believes will be one of the most sophisticated machines for sale this year.
Manufactured in 2022 and armed with a HEIDENHAIN TNC640i HSCI for Milling & Turning and a HEIDENHAIN HR-520 portable electronic handwheel, this is a rare opportunity to invest in a piece of equipment that could transform your manufacturing processes. It is being sold in new condition due to it only recording 1,000 hours.
Get in touch with Eddisons Asset Auctions if you are interested in buying or viewing this item. A dedicated team member will be on hand to assist you.
What is available in the Calletech CNC machinery auction?

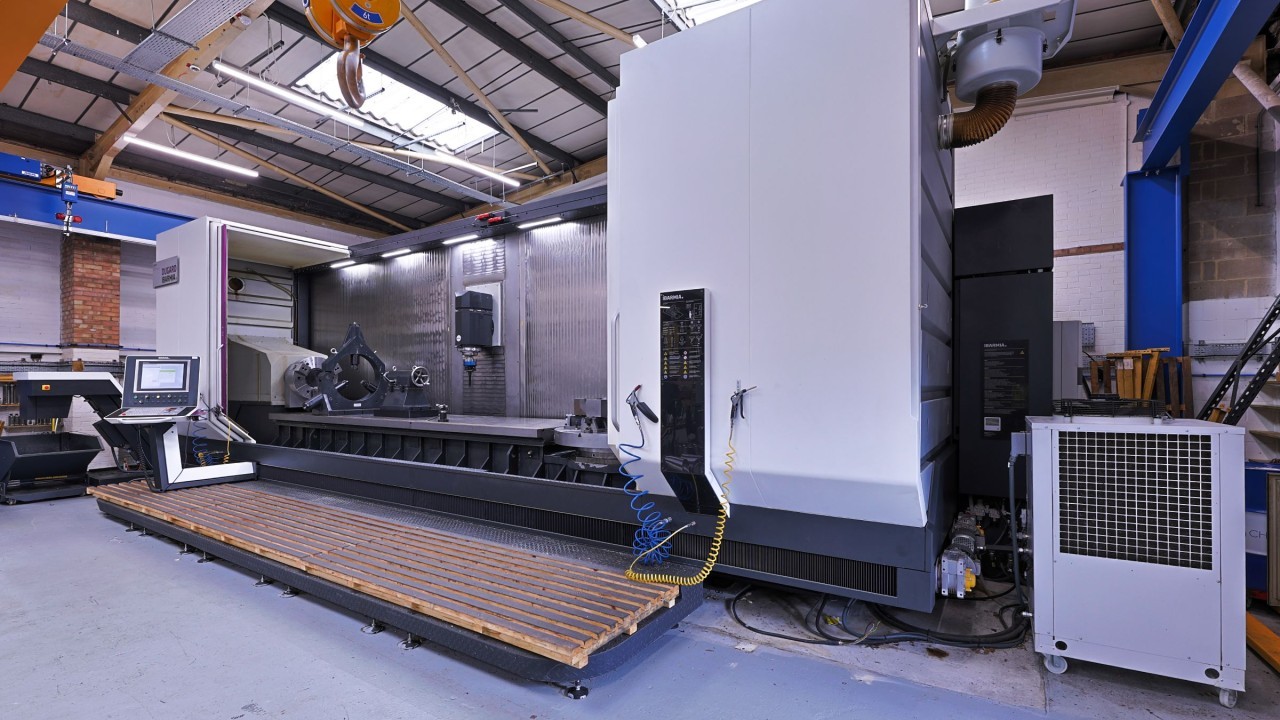

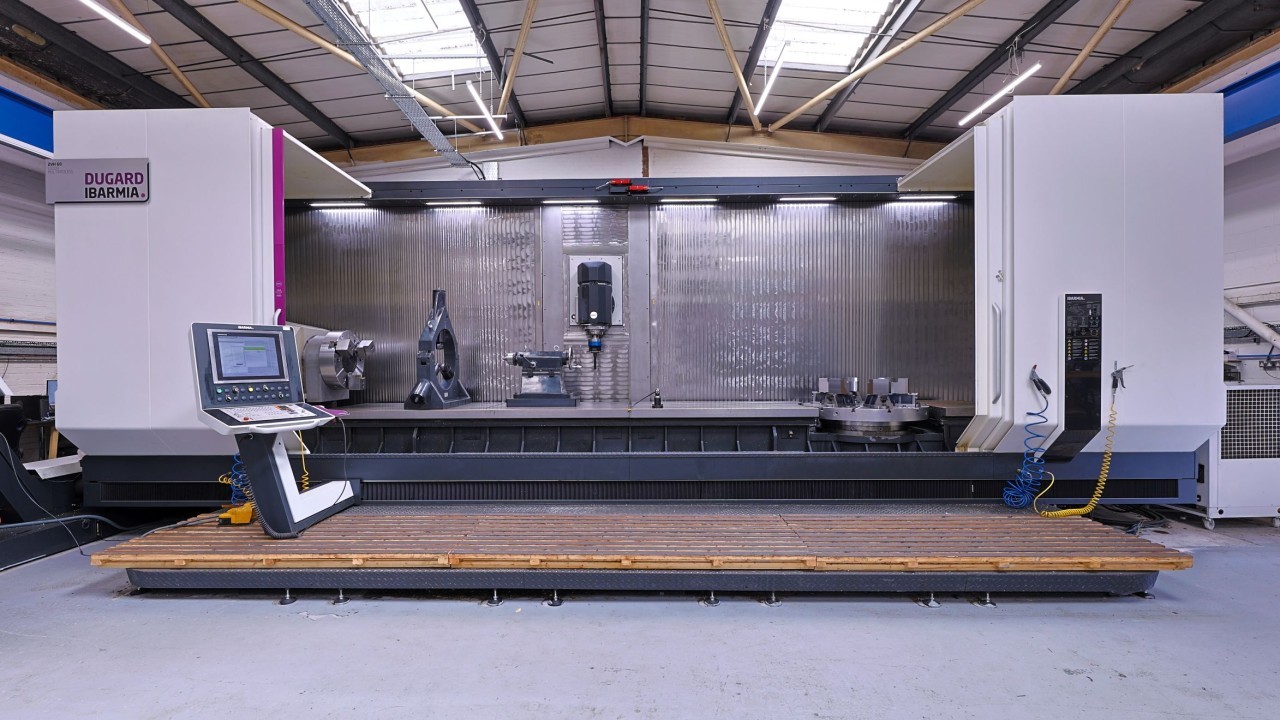

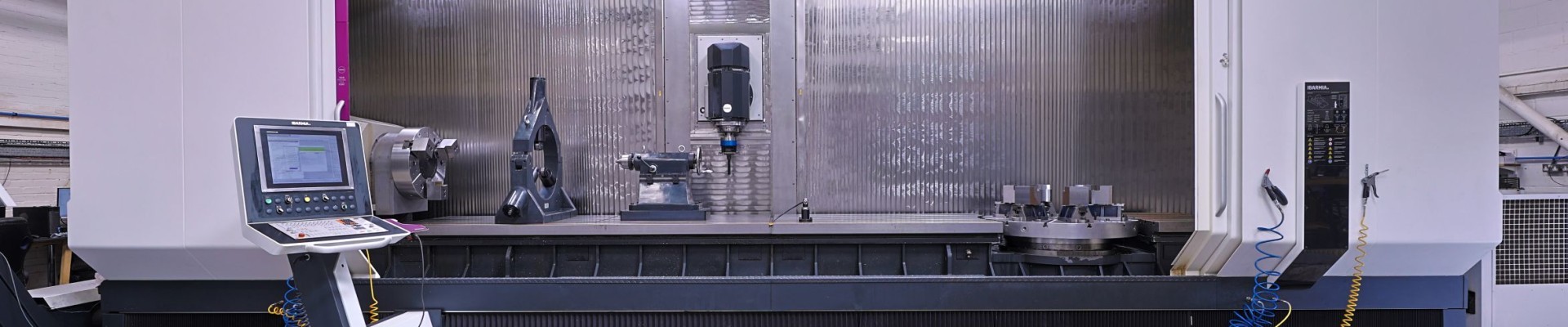

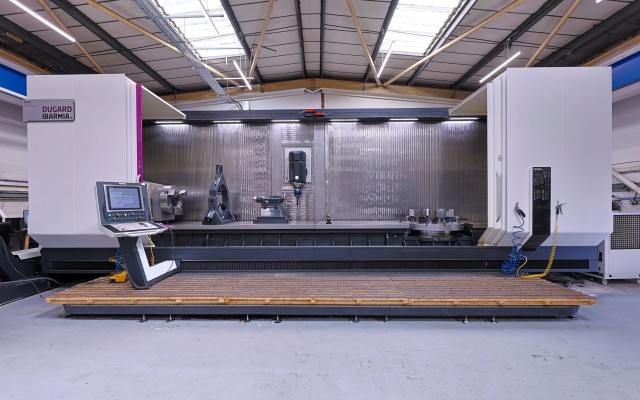

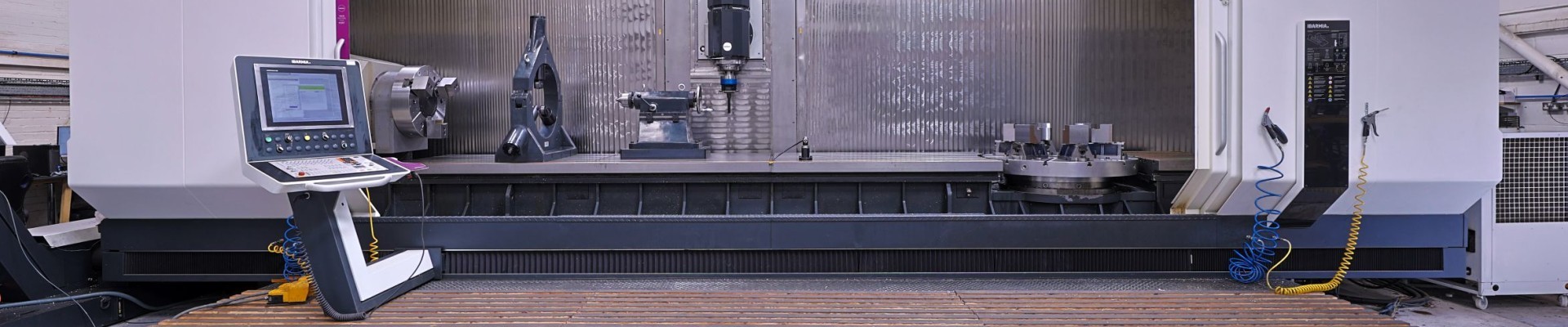

Ibarmia ZVH60/L6000 Multi-process Machining Centre
The Ibarmia ZVH60/L6000 Multi-process Machining Centre is one of the most impressive pieces of equipment available at Eddisons Asset Auctions. Here is what it can offer you and your business:
Key features and options
If you decide to purchase this item, you can expect a calibration of rotating axis with Heidenhain Kindematics Opt, a CAPTO C8 main spindle taper, a valve for automatic pressure setting, and a 70 bar through-spindle coolant.
It also boasts an 80-position tool magazine, multi-process capability, two air gun units, and two spray guns with mist filtration units.
Rotary and turning capability
From a rotary and turning perspective, the Ibarmia ZVH60/L6000 integrates advanced turning capability through a Ø1200mm vertical rotary table. For turning and 5-axis operations, it features a swing of Ø1750mm and has an Ø630mm auto self-centring 3-jaw chuck on the horizontal axis for turning & 5-axis operations. Additional enhancements, such as a 110mm bar capacity cylinder and a manual tailstock for its horizontal lathe, make it one of the most operationally versatile machines on the market.
Some of its other aspects that support its rotary and turning capability include a 110 mm bar capacity cylinder for chuck, a hydraulic extension for automatic operation, T-slot modification, and a Manual tailstock for horizontal lathe.
Probing and measurement
For probing and measurement, you will benefit from a RENISHAW RMP600 touch trigger probe, a RENISHAW TS27R tool touch trigger with square stylus, and a Z-axis extended by 200mm. This ensures high-accuracy measurement and repeatability across demanding production runs.
Accessories and tooling
The Ibarmia ZVH60/L6000 Multi-process Machining Centre comes with an abundance of tooling and accessories too. Some of the highlights include a set of 6 manual jaw supports, CAPTO C8 grinding simple setting, Z Series dressing unit single point type (Z Series), and H500/100-600 steady rest 3-point support.
You can also expect a preparation spindle head for manual change of support, an operator platform in front of the machine, a tipping swarf bin, door modification, a U-axis, and a sub-plate for the tailstock.

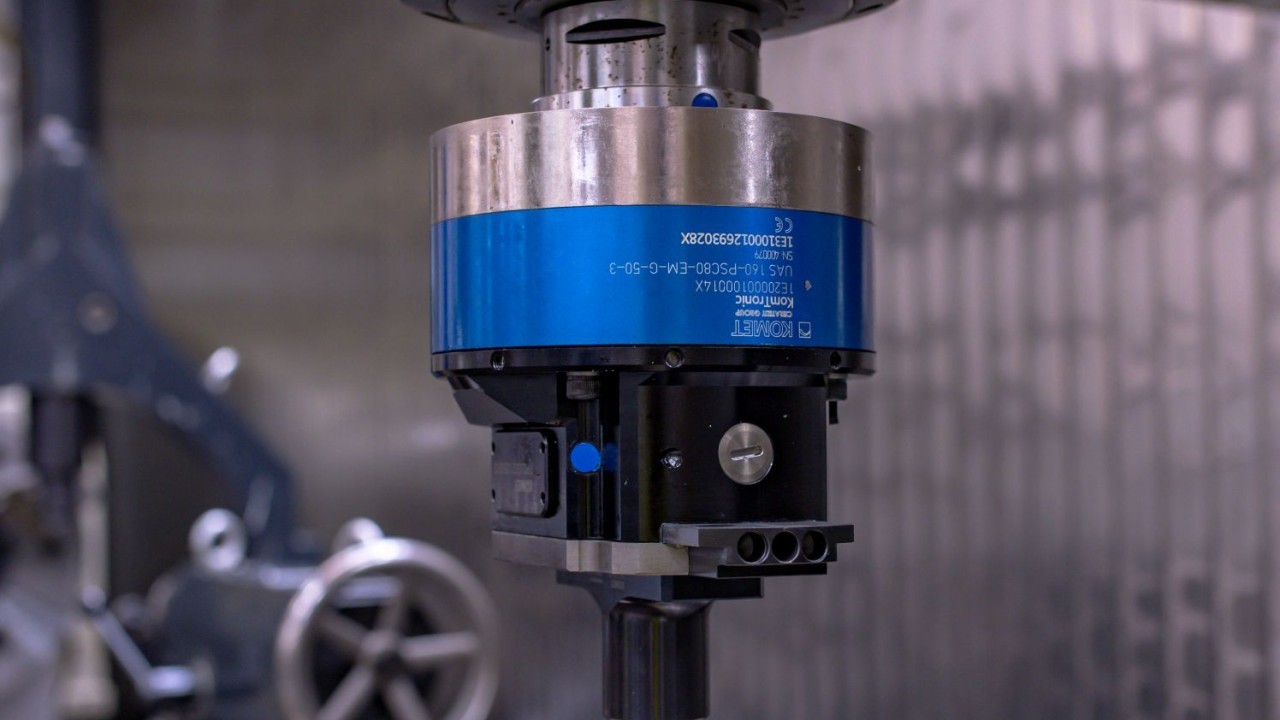

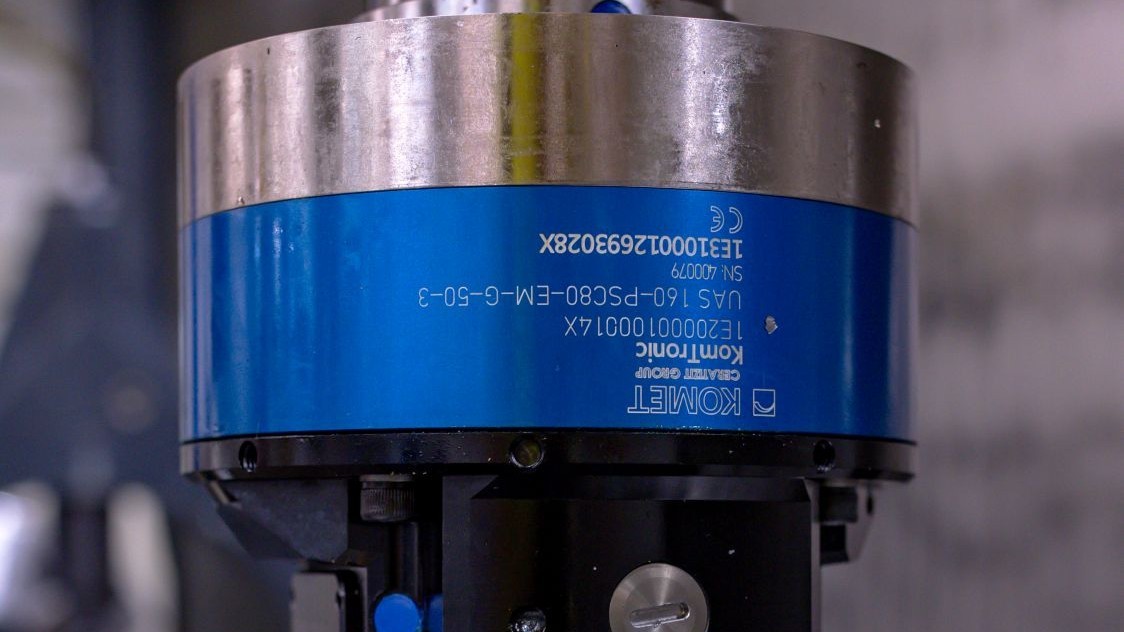

Komet Komtronic Head
The Komet Komtronic Head is an NC-controlled tool head engineered for precision machining applications. Its direct path measurement system ensures accurate positioning, while the 50 mm stroke and 350 mm/min feed rate deliver consistent performance. Operating at speeds of up to 4,000 RPM with an integrated 40-bar through-coolant supply, this equipment is designed to meet demanding operational requirements.

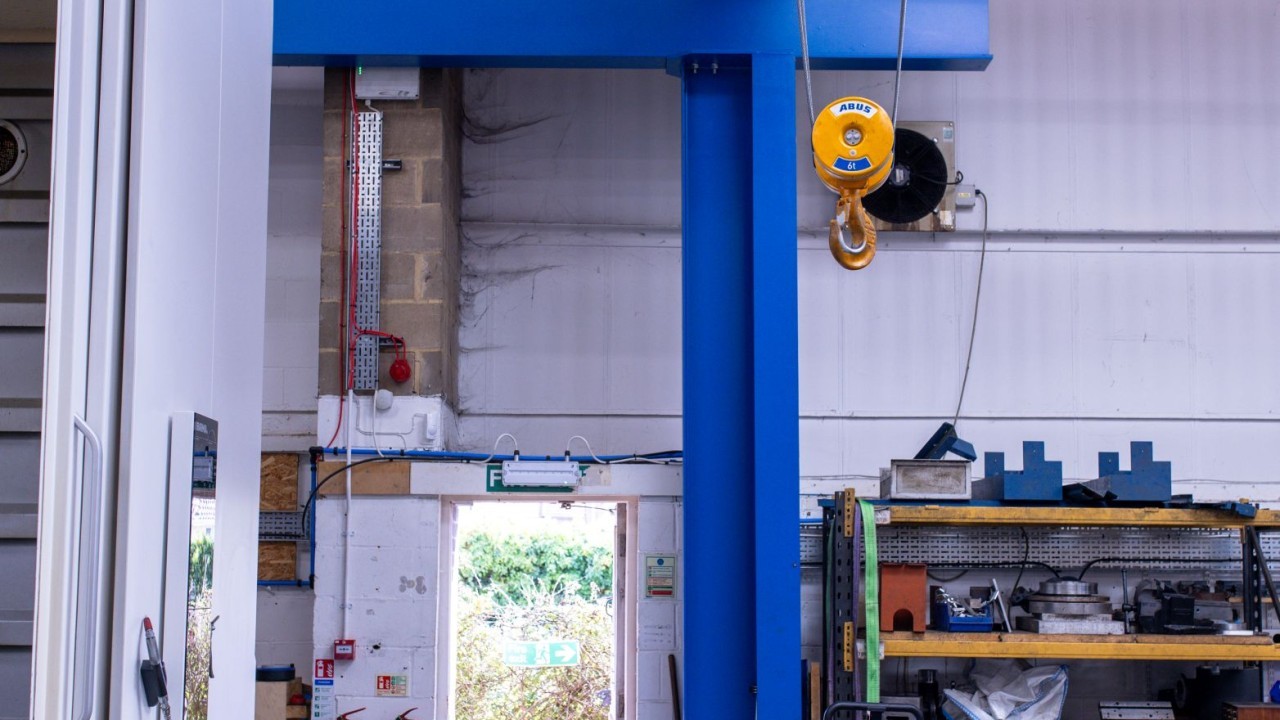

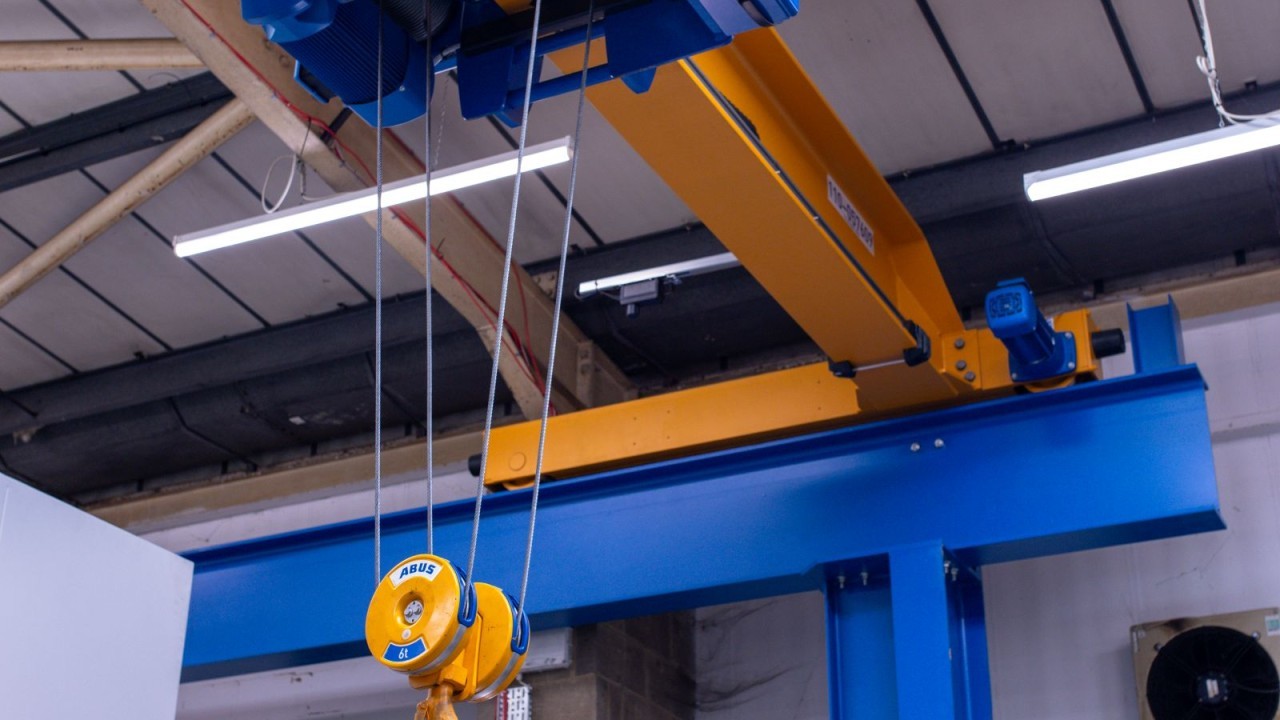

2022 Abus Crane System
This 2022 Abus Crane System meets FEM Group 1Am / M4 standards and offers a 6,000 kg load capacity. The system features dual lifting and travelling speeds, enabling both precision handling and rapid material transfer. With a 6,000 mm hook path and efficient motor configuration supporting up to 360 switching operations per hour, it operates on 380–415 V / 50 Hz power supply for reliable performance.
Viewing and buying information for the Ibarmia ZVH60/L6000 Multi-process Machining Centre
The Ibarmia ZVH60/L6000 Multi-process Machining Centre can be purchased via private treaty sale or through our CNC tool auction. Viewings are strictly available by appointment only, and the machinery is located in the south of the UK.
The equipment is being sold on behalf of Callatech Precision Engineers Ltd, an industry-leading firm in West Sussex. Talking about the equipment prior to sale, they had this to say:
“Callatech’s story is one of continuous investment and raising the bar for our customers. We chose the Ibarmia ZVH60/L6000 to give us a true USP: multi-process capability on long-bed and large diameter work and complex geometry in a single, controlled set-up. Being among the first of its type installed in the UK, it elevated our profile and capability from day one. Our philosophy is simple: ‘don’t stand still’. We invest in advanced machinery, processes and skills, so our clients benefit from higher quality, shorter lead times and greater reliability.”
About Callatech Precision Engineers Ltd
Founded in 1990, Callatech Precision Engineers Ltd is a UK-based CNC machining specialist trusted by demanding industries for high-quality, complex components. For more than three decades, they have adapted, invested and thrived through shifting economic climates, a testament to both their resilience and commitment to progress. From turning, milling and gear cutting to grinding and spark, and wire eroding, they combine skilled engineers with advanced technology to deliver precision, reliability and responsive lead times. Continuous investment in people and equipment underpins their long-term partnerships and keeps their customers competitive.
Buy an Ibarmia ZVH60/L6000 Multi-process Machining Centre today
Do not miss out on the chance to buy the state-of-the-art Ibarmia ZVH60/L6000 Multi-process Machining Centre and other tools from Eddisons Asset Auctions. Browse these options in our huge CNC machine tool auction that is open now and closes on 4th December 2025.
Arrange a viewing today by calling 07379 430119, messaging his WhatsApp or emailing [email protected]. Alternatively, connect with Antony on LinkedIn to discuss the equipment with him online.
