Eddisons Asset Auctions is pleased to be selling a ZVH60/L6000 Multi-process Machining Centre, which CNC expert Antony Reed believes will be one of the most sophisticated machines for sale this year.
Manufactured in 2022 and armed with a HEIDENHAIN TNC640i HSCI for Milling & Turning and a HEIDENHAIN HR-520 portable electronic handwheel, this is a rare opportunity to invest in a piece of equipment that could transform your manufacturing processes.
Get in touch with Eddisons Asset Auctions if you are interested in buying or viewing this item. A dedicated team member will be on hand to assist you.

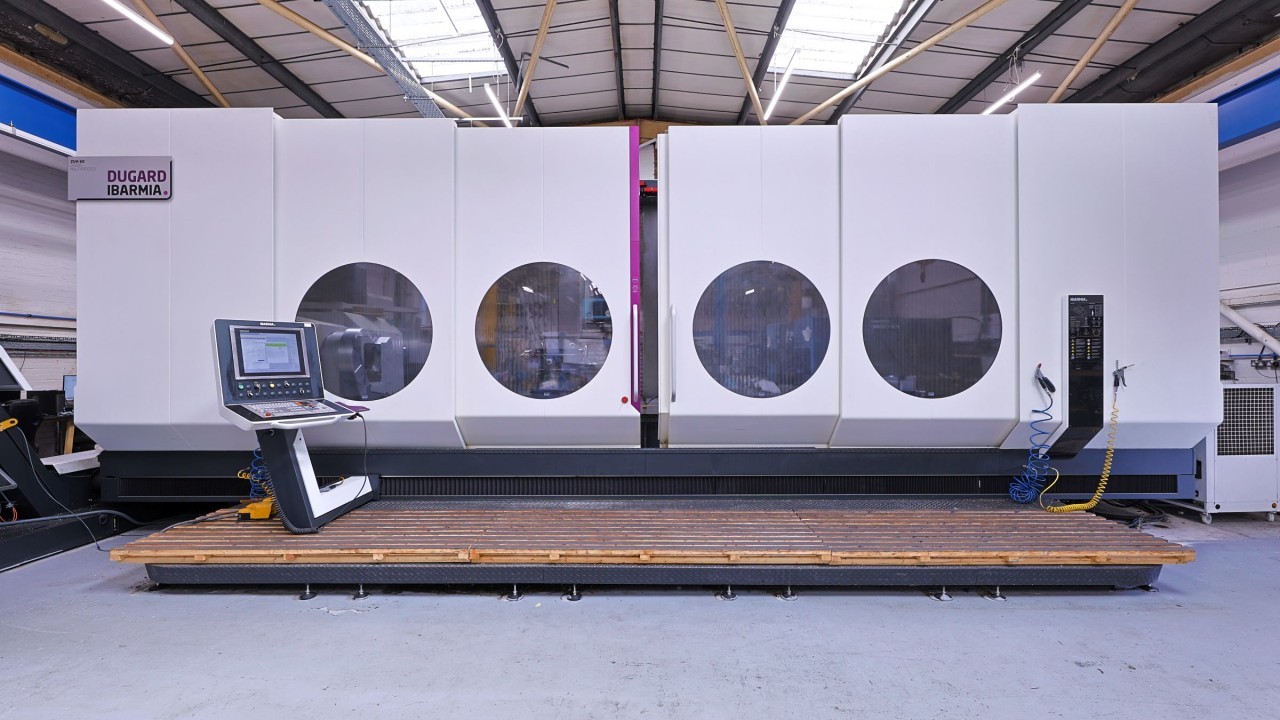

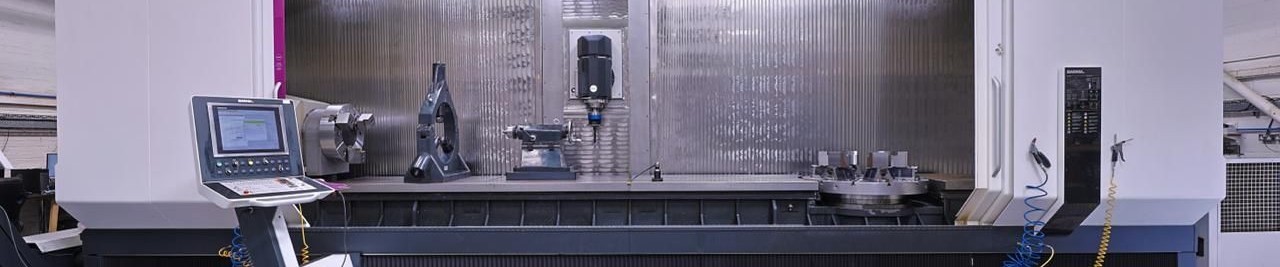

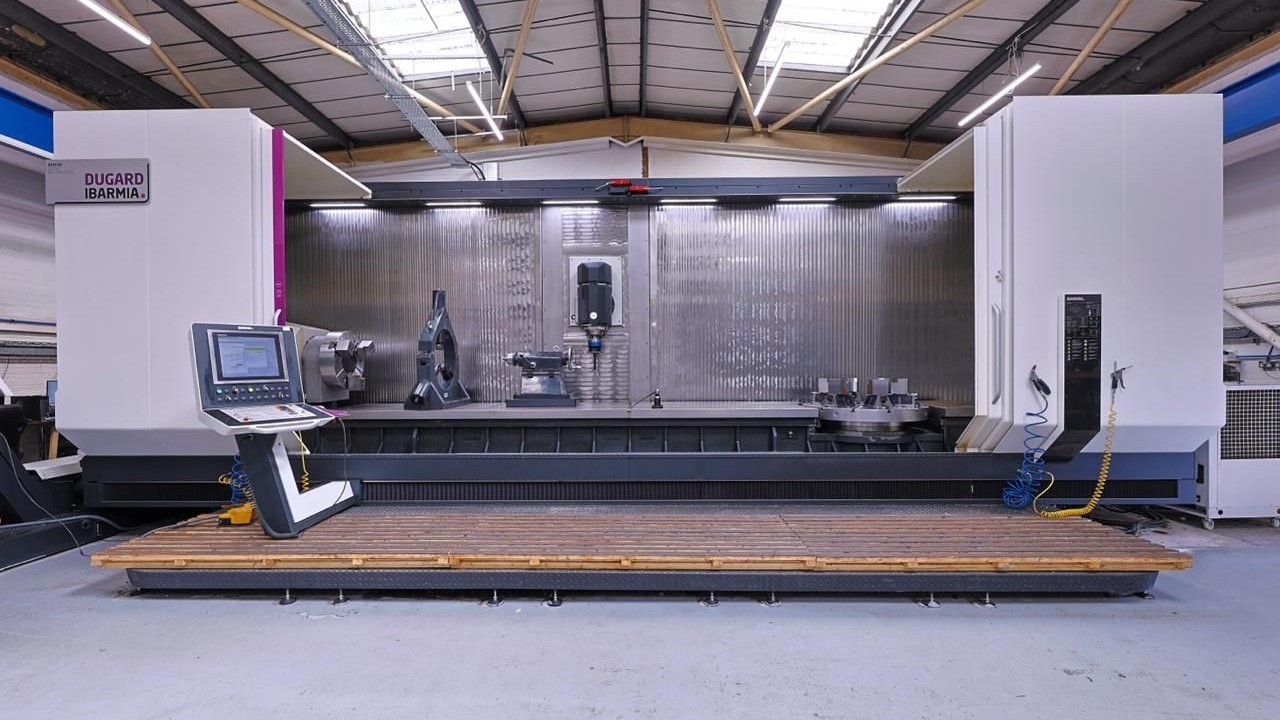

A closer look at the Ibarmia ZVH60/L6000 Multi-process Machining Centre
The Ibarmia ZVH60/L6000 Multi-process Machining Centre is one of the most impressive pieces of equipment available at Eddisons Asset Auctions. Here is what it can offer you and your business:
Key features and options
If you decide to purchase this item, you can expect a calibration of rotating axis with Heidenhain Kindematics Opt, a CAPTO C8 main spindle taper, a valve for automatic pressure setting, and a 70 bar through-spindle coolant.
It also boasts an 80-position tool magazine, multi-process capability, two air gun units, and two spray guns with mist filtration units.
Rotary and turning capability

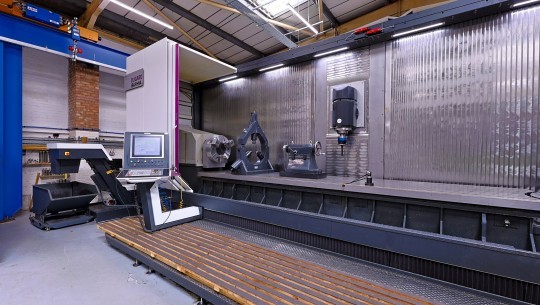

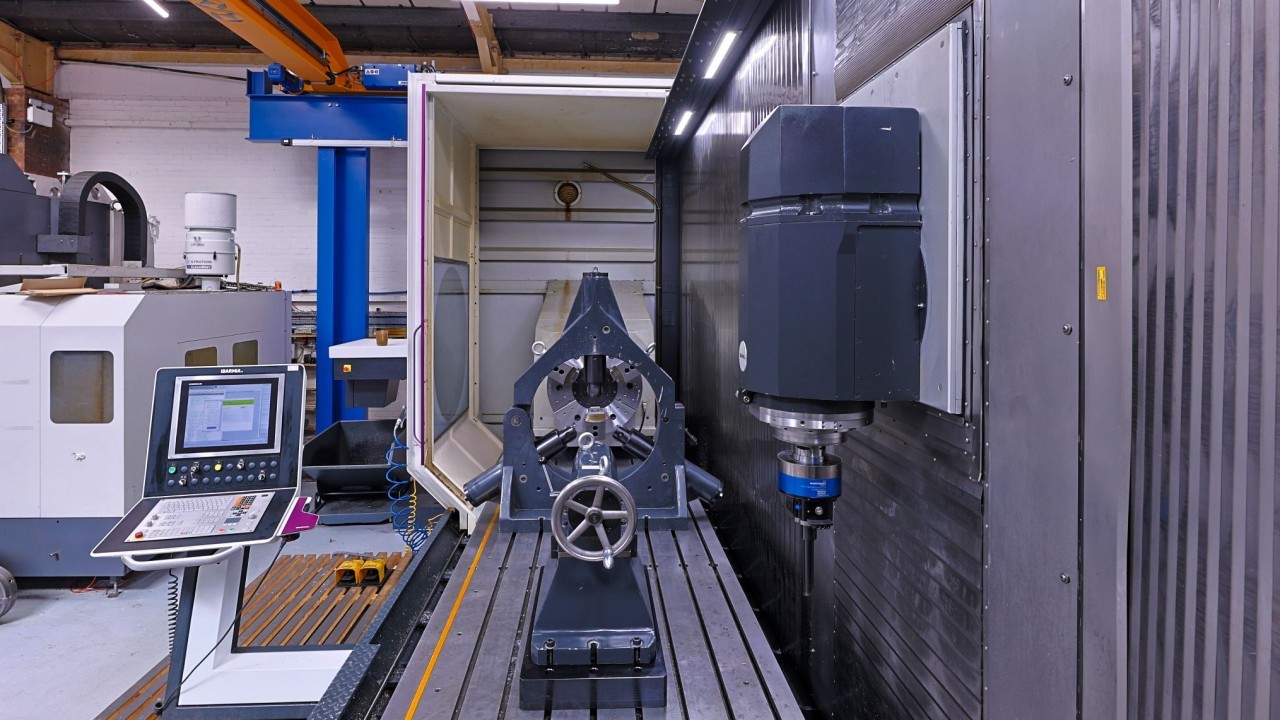

From a rotary and turning perspective, the Ibarmia ZVH60/L6000 integrates advanced turning capability through a Ø1200mm vertical rotary table. For turning and 5-axis operations, it features a swing of Ø1750mm and has an Ø630mm auto self-centring 3-jaw chuck on the horizontal axis for turning & 5-axis operations. Additional enhancements, such as a 110mm bar capacity cylinder and a manual tailstock for its horizontal lathe, make it one of the most operationally versatile machines on the market.
Some of its other aspects that support its rotary and turning capability includes a110mm bar capacity cylinder for chuck, hydraulic extension for automatic operation, T-slot modification, and a Manual tailstock for horizontal lathe.
Probing and measurement
For probing and measurement, you will benefit from a RENISHAW RMP600 touch trigger probe, a RENISHAW TS27R tool touch trigger with square stylus, and a Z-axis extended by 200mm. This ensures high-accuracy measurement and repeatability across demanding production runs.
Accessories and tooling
The Ibarmia ZVH60/L6000 Multi-process Machining Centre comes with an abundance of tooling and accessories too. Some of the highlights include a set of 6 manual jaw supports, CAPTO C8 grinding simple setting, Z Series dressing unit single point type (Z Series), and H500/100-600 steady rest 3-point support.
You can also expect a preparation spindle head for manual change of support, an operator platform in front of the machine, a tipping swarf bin, door modification, a U-axis, and a sub-plate for the tailstock.
Viewing and buying information for the Ibarmia ZVH60/L6000 Multi-process Machining Centre
The Ibarmia ZVH60/L6000 Multi-process Machining Centre can be purchased via private treaty sale through Eddisons Asset Auctions. Viewings are strictly available by appointment only, and the machinery is located in the south of the UK.
The equipment is being sold on behalf of Callatech Precision Engineers Ltd, an industry-leading firm in West Sussex. Talking about the equipment prior to sale, they had this to say:
“Callatech’s story is one of continuous investment and raising the bar for our customers. We chose the Ibarmia ZVH60/L6000 to give us a true USP: multi-process capability on long-bed and large diameter work and complex geometry in a single, controlled set-up. Being among the first of its type installed in the UK, it elevated our profile and capability from day one. Our philosophy is simple: ‘don’t stand still’. We invest in advanced machinery, processes and skills, so our clients benefit from higher quality, shorter lead times and greater reliability.”
Enquire about the Ibarmia ZVH60/L6000 Multi-process Machining Centre today
Do not miss out on the chance to buy the state-of-the-art Ibarmia ZVH60/L6000 Multi-process Machining Centre from Eddisons Asset Auctions. Arrange a viewing today by calling 07379 430119 or emailing [email protected]. Alternatively, connect with Antony on LinkedIn to discuss the equipment with him online.
