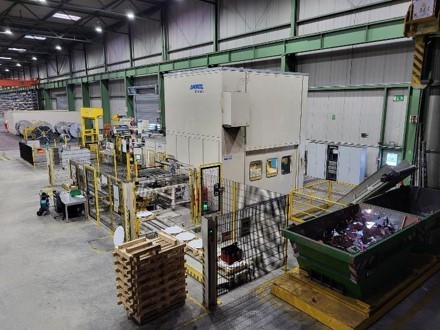

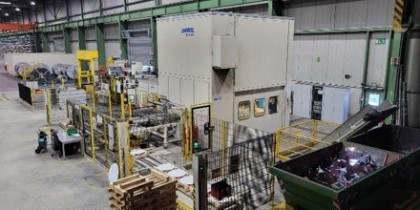

A Superb Late Model Andritz Kaiser 320 Tonne Blanking Line (previously used for producing circular disc)

Instructed by Outokumpu Nirosta GmbH

For Sale by Negotiation

•  A Superb Late Model Andritz Kaiser 320 Tonne Blanking Line (previously used for producing circular disc)
•  A 320 tonne capacity Blanking Line “

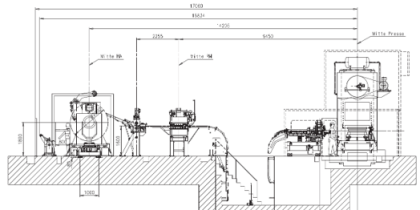

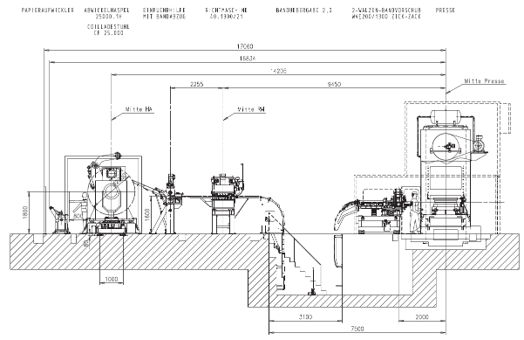

• Including: Paper coiler; Uncoiler; Leveller; Coil Handover: Zigzag Coil Feed; Andritz Kaiser Blanking Line
• YOM: 2013
• Electrics: 55kw Motor; 400V; 50Hz
• Nominal Press Force: 3150 KN
• Drive: Planetary Gearbox
• Strokes per minute: 10 – 75spm
• Weight: Approx 70 tonnes.
• Coil Weight: Max 25 tonnes.
• Coil Data: Entry Width 300-1300mm; Thickness 0.3mm – 1.5mm Coil; I/D 508/610mm; Coil O/D 800-2000mm
• Initial cost new approx. €2.7 million.
• Offers invited around €450,000

Please note This line was installed to cut stainless steel circular discs and is available for sale as a result of cessation of that activity. There are 14 Disc Cutting Tools from 490- 660mm diameter which are available for sale by separate negotiation.

Inspection: By appointment with Eddisons contact [email protected] Tel +44(0)7831854971
