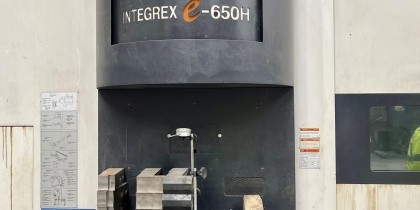

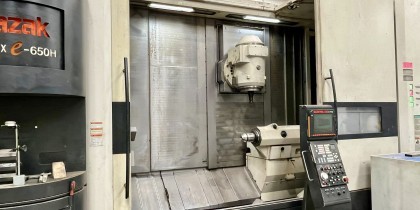

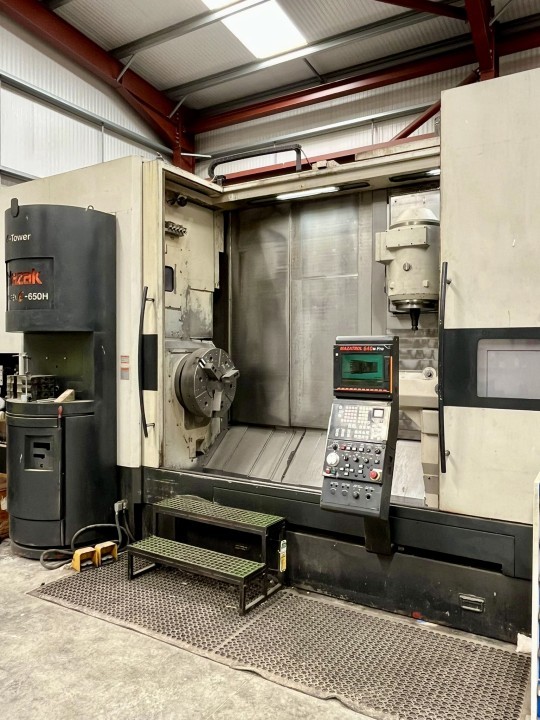

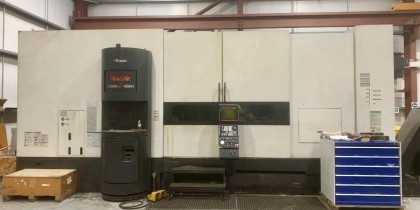

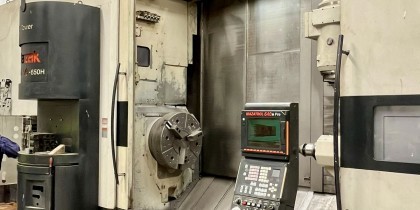

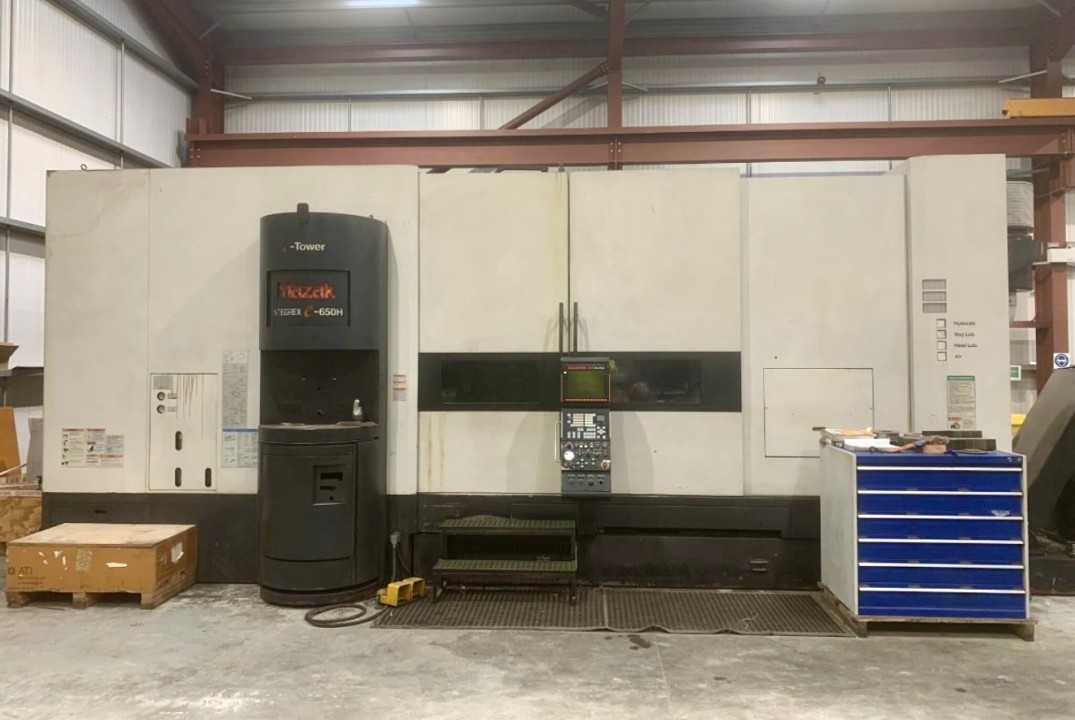

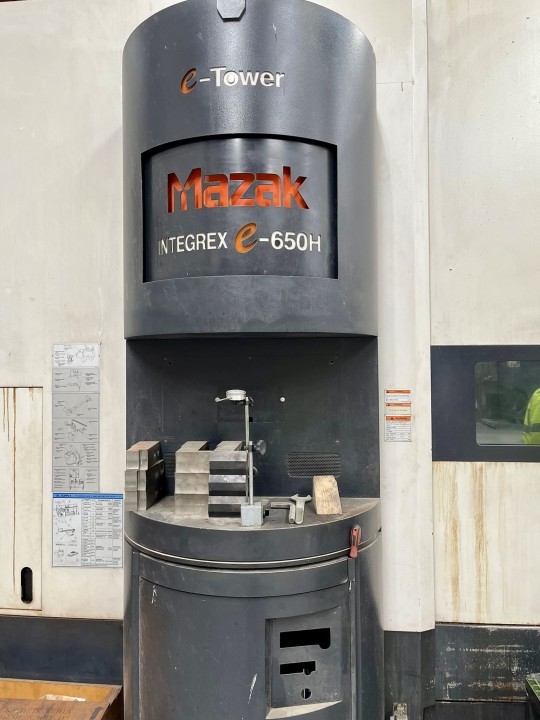

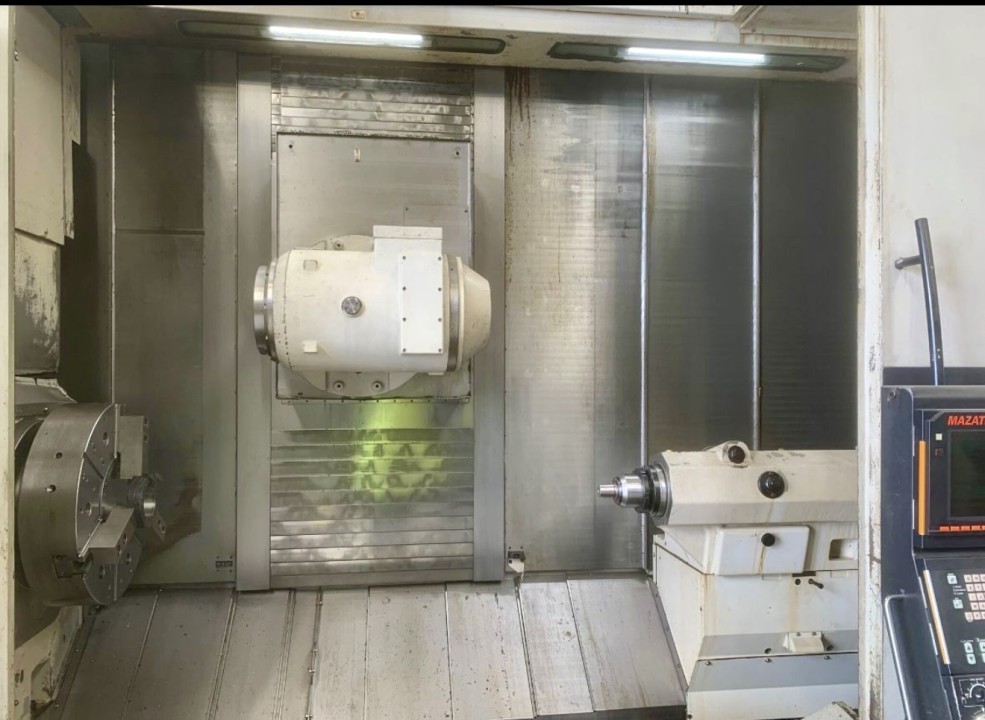

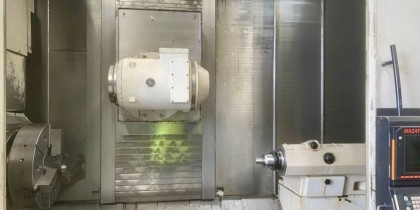

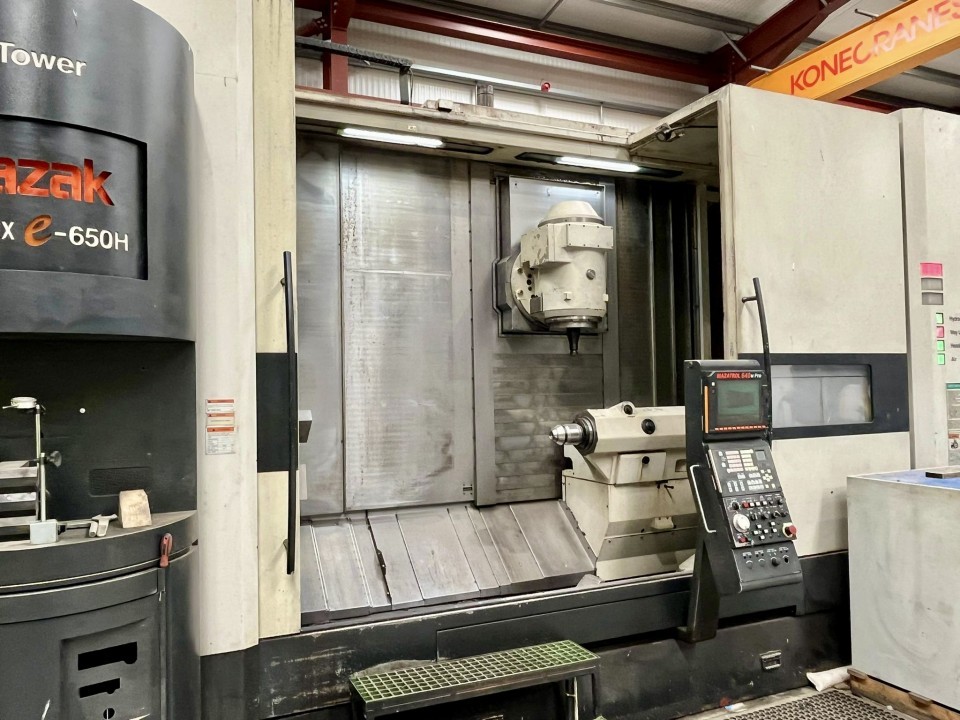

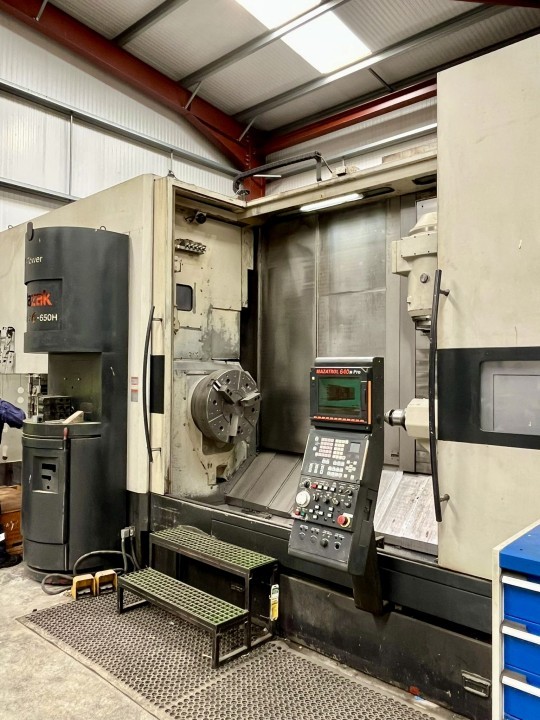

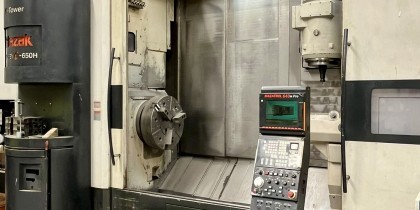

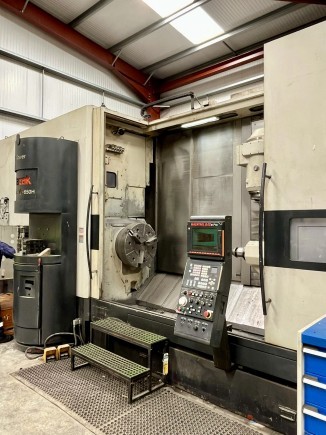

2004 Mazak Integrex e-650 H x2000 CNC Turn/Mill Centre

For Sale – 2004 Mazak Integrex e-650 H x2000 CNC Turn/Mill Centre

Machine Details:

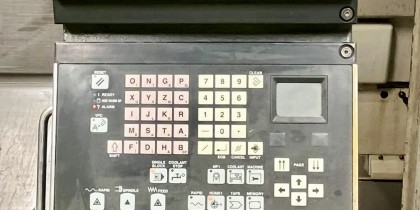

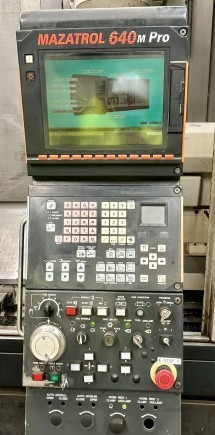

• Control: Mazatrol Fusion 640 MT Pro
• Max Machining Length: 2,032 mm
• Max Swing: 920 mm
• Main Spindle Motor: 45 kW

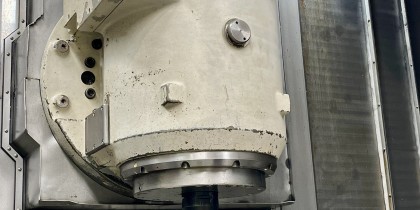

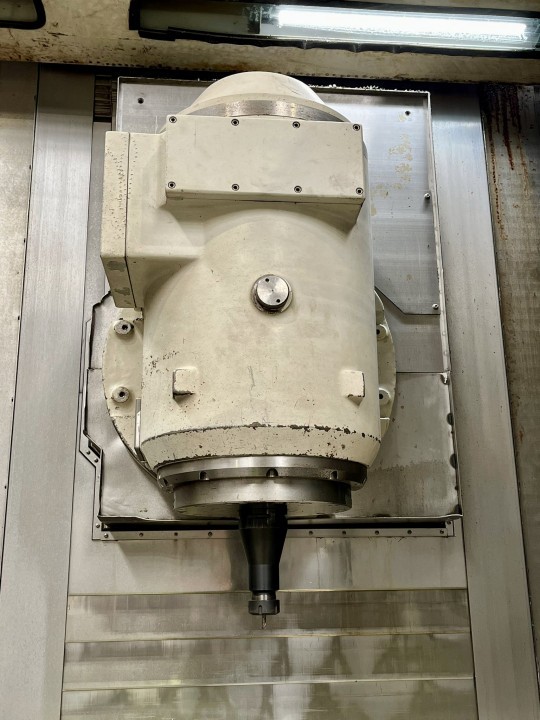

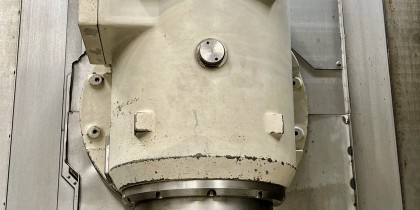

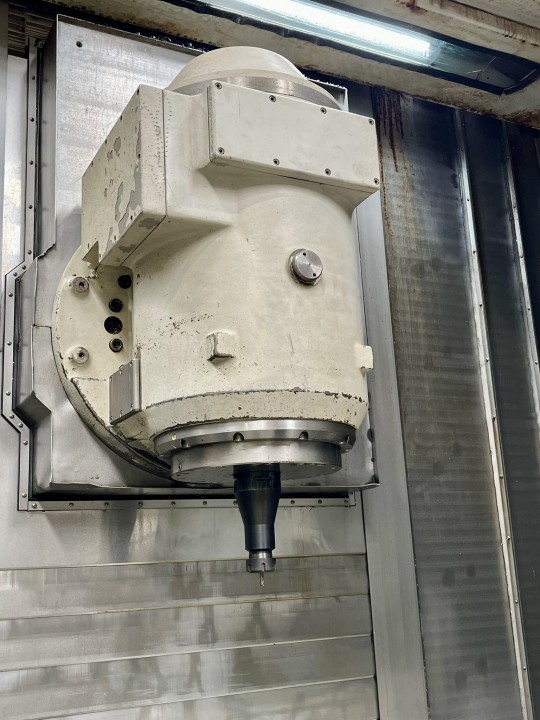

• Rotary Tool Spindle Motor: 37 kW
• Main Spindle Speed: ~1,600 rpm
• Rotary Tool Spindle Speed: ~10,000 rpm
• Spindle Bore: Ø260 mm
• X/Y/Z Travels: 1025 / 650 / 2106 mm
• B-axis Range: -30° to +210°
• C-axis: 360°
• Rapid Traverse (X/Y/Z): 40 / 40 / 40 m/min

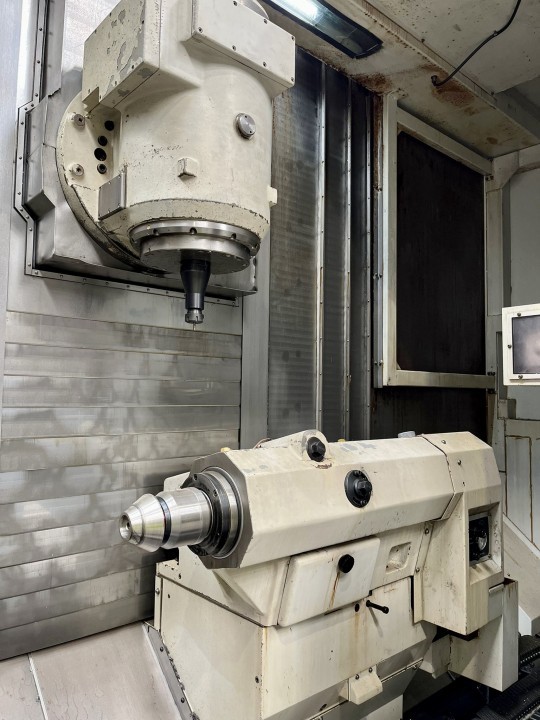

• Tailstock Travel: 1,858 mm
• Tailstock Quill Stroke: 160 mm
• Tailstock Centre: MT6

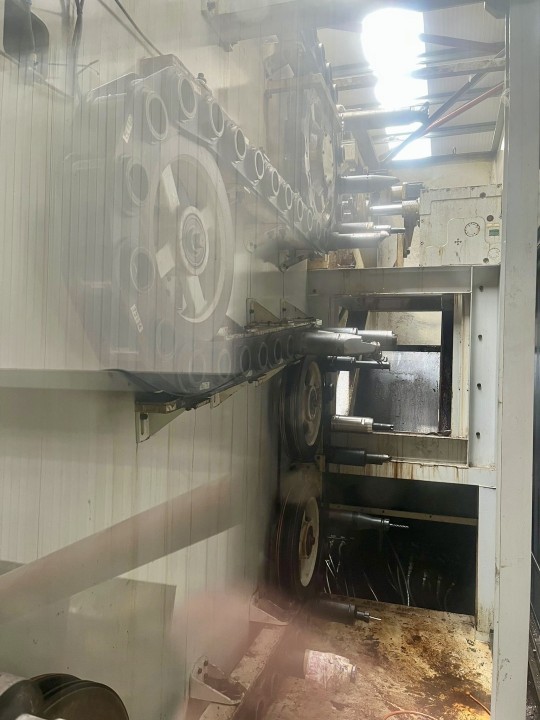

• ATC: 80 tools
• Tooling Interface: CAPTO C8

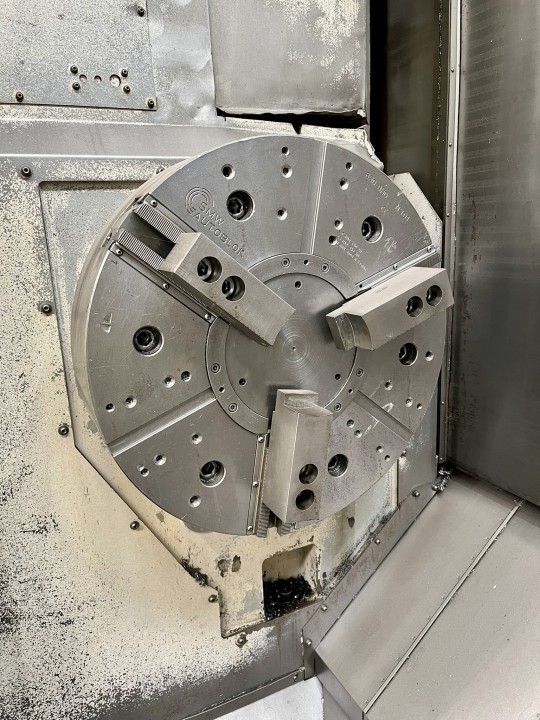

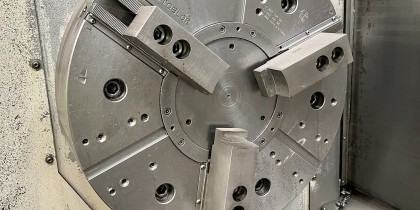

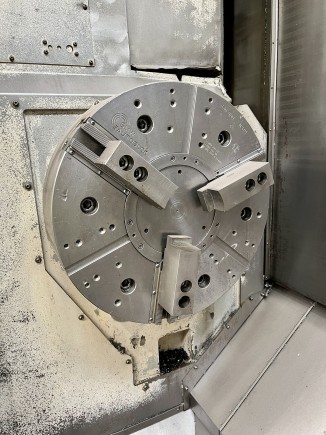

• Chucks Included: 24” and 31”

Additional Equipment & Features:

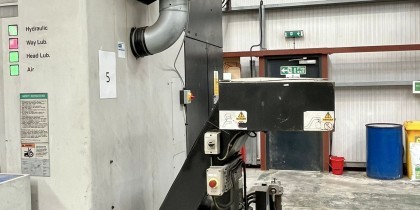

• Cromar Swarf Management System

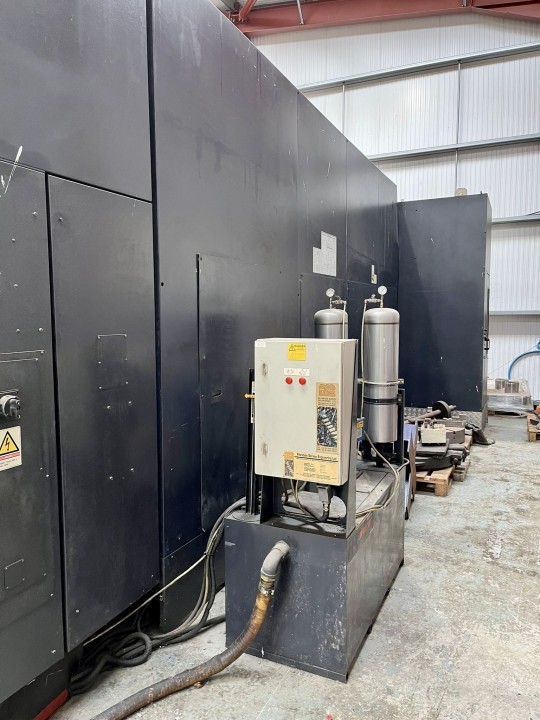

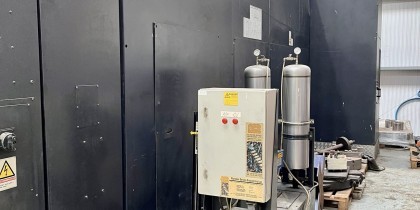

• Duplex 70 kg Coolant System
• Advanced Software & Functions:
• EIA/ISO Code Input Function
• EIA/ISO Simultaneous 5-Axis Control
• Additional Variables (600 Pairs)
• Additional Workpiece Coordinate Systems (G54.1)
• G00 Slope Constant, G37 Auto Tool Length Measurement
• Inverse Time Feed
• Tool Tip Point Control (Simultaneous 5-Axis)
• Mazak 2D High-Speed Software
• Mazak Tapping, Boring, Tornado Package
• Mill Spindle Synchronised Tapping
• Sequence Number Comparison & Stop Function
• Thread Cutting Function

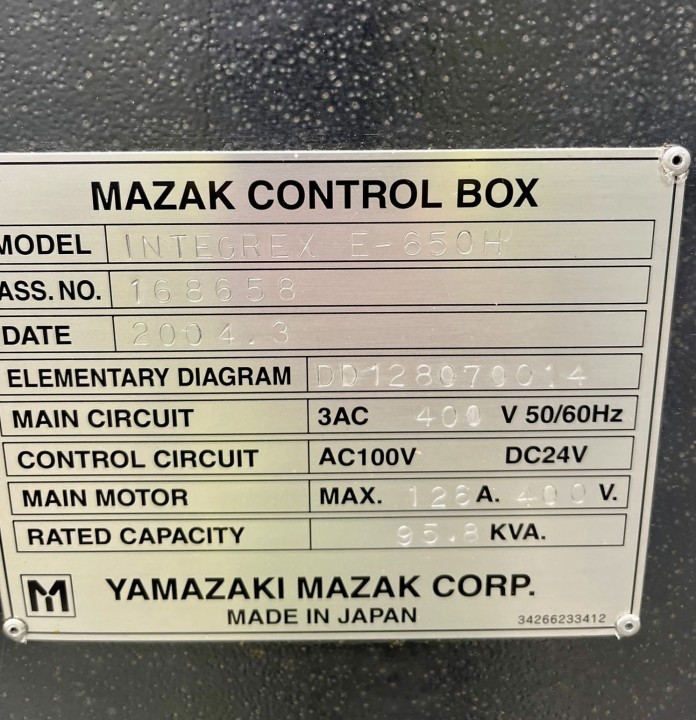

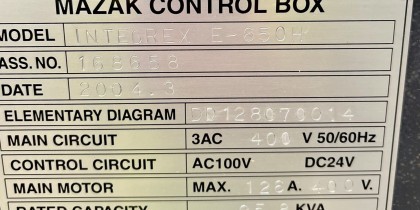

Serial Number: 168658

Included Accessory:

John Walton Rocksteady Manual Steady Rest – Model SCC700 NDW000670

• Diameter Capacity: 250 mm to 700 mm
• C-Style Latch Top
• Cantilever Rear Arm with Apron Adjuster

Mounting: Suits Mazak Integrex E-650

Sensible offers invited around the guide price of £75,000
