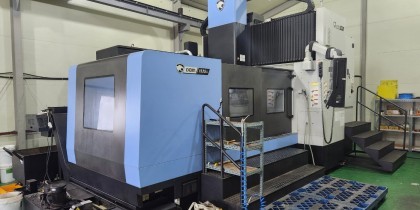

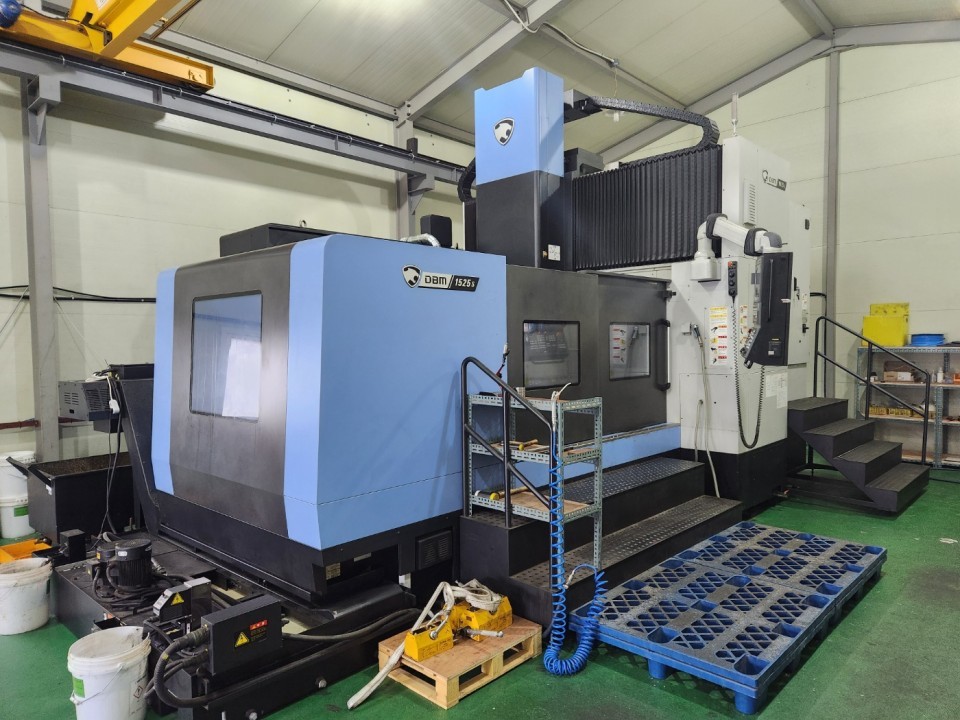

2022 Doosan DM1525S Double column CNC Machining Centre
ID:
1226517-43
Details

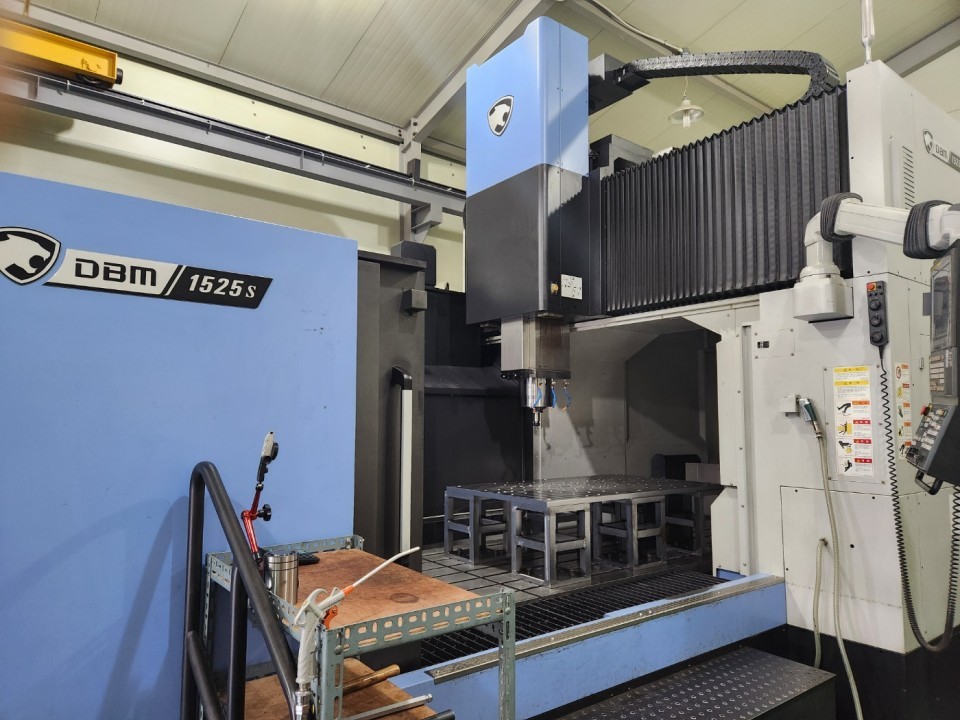

2022 Doosan DM1525S Double column CNC Machining Centre

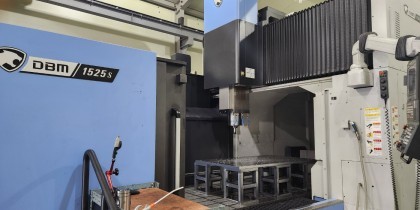

The 2022 Doosan DM1525S is a heavy-duty double-column CNC machining centre built for accuracy and stability. It features a 1250 x 2800 mm table with a 10-ton capacity and generous travels of 2800 x 1350 x 750 mm. With a 300 mm raiser block, BT50 spindle (to be supplied as CAT50) running up to 12,000 rpm, and a 25/30 kW motor, it delivers strong cutting performance. Equipped with a 40-tool ATC, XYZ scales, TS27R tool setter, chip conveyor, semi splash guard, and Fanuc 31iB control, it’s ready for demanding machining work.

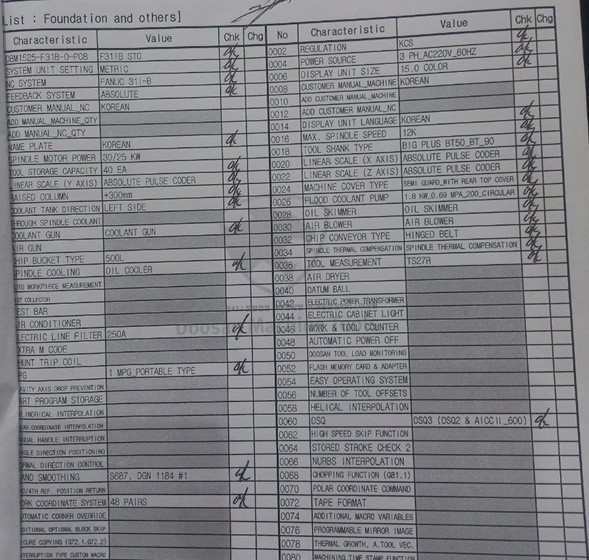

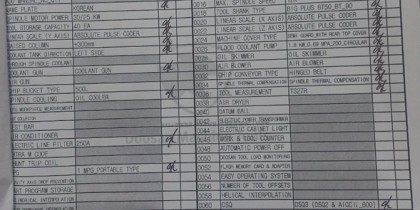

Key Specifications
- Table size : 1250x2800mm/10 ton
- XYZ : 2800x1350x750mm
- Distance between columns : 1550mm
- Table to spindle nose : 250-1300mm
- 300mm raiser block
- Spindle speed : 12,000 rpm
- BT50 (we will change to CAT50)
- Main motor : 25/30kw
- 40 tool ATC
- Scales XYZ
- TS27R Tool setter
- Semi splash guard with rear top cover
- Chip conveyor

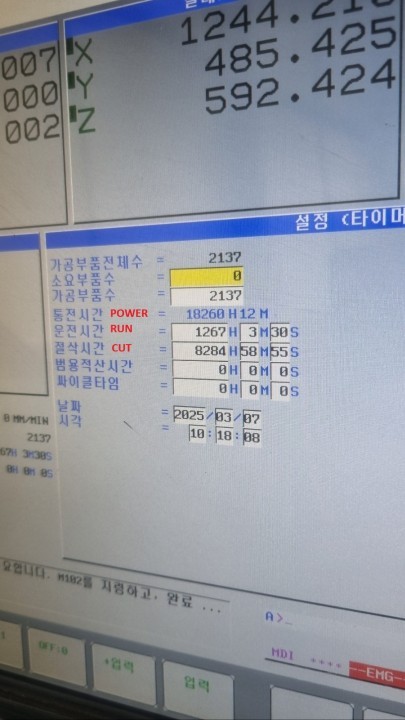

- Fanuc 31iB control
Located in South Korea CIF
