2018 Doosan Puma SMX3100LS Multi tasking machine

2018 Doosan Puma SMX3100LS Multi tasking machine

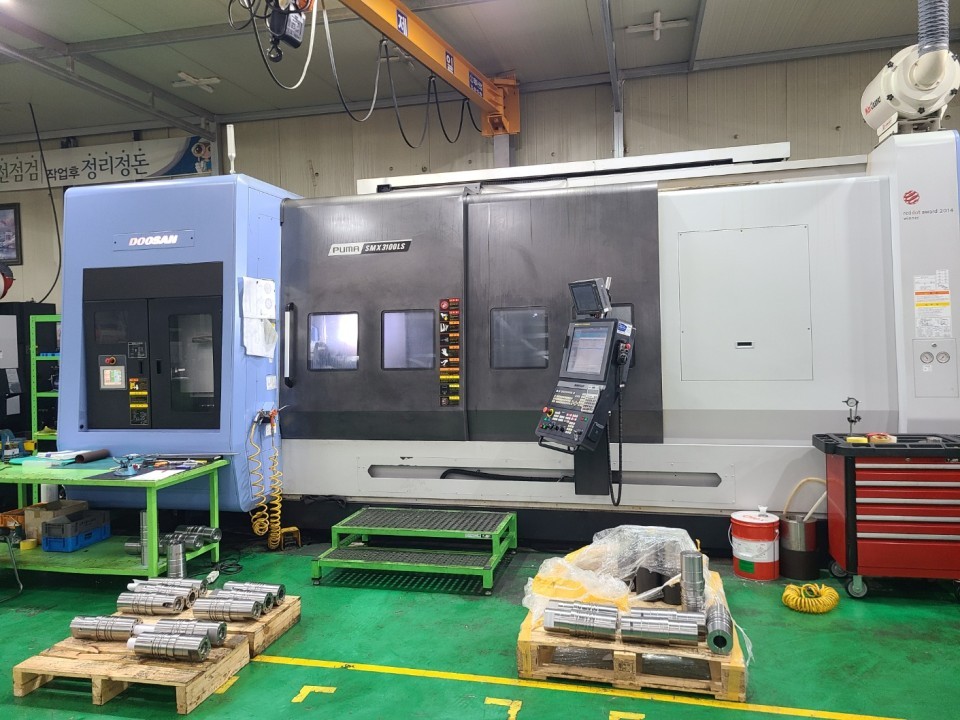

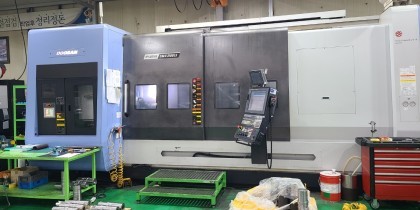

This 2018 Doosan Puma SMX3100LS is a powerful multi-tasking machine designed for complex, high-precision work. It offers a maximum cutting diameter of 660 mm and cutting length of 2,540 mm, with generous XYZ travels of 630 x 300 x 2,585 mm. The left and right spindles run at 2,500 rpm and 4,000 rpm respectively, with bar capacities of 102 mm and 92 mm. A 12,000 rpm CAPTO C6 milling spindle, 80-tool ATC, hydraulic steady rest, chip conveyor, and Fanuc 31-B5 control complete this highly capable package.

Key Specification

• Max cutting dia : 660mm
• Max cutting length : 2540 mm
• XYZ : 630x300x2585mm
• Bar capacity/left head : 102mm, Right head : 92mm
• Spindle speed : left head 2500 rpm, right head 4000 rpm

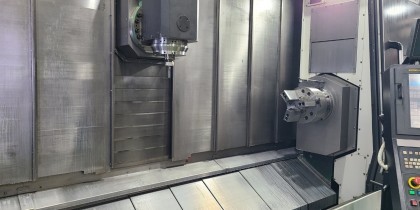

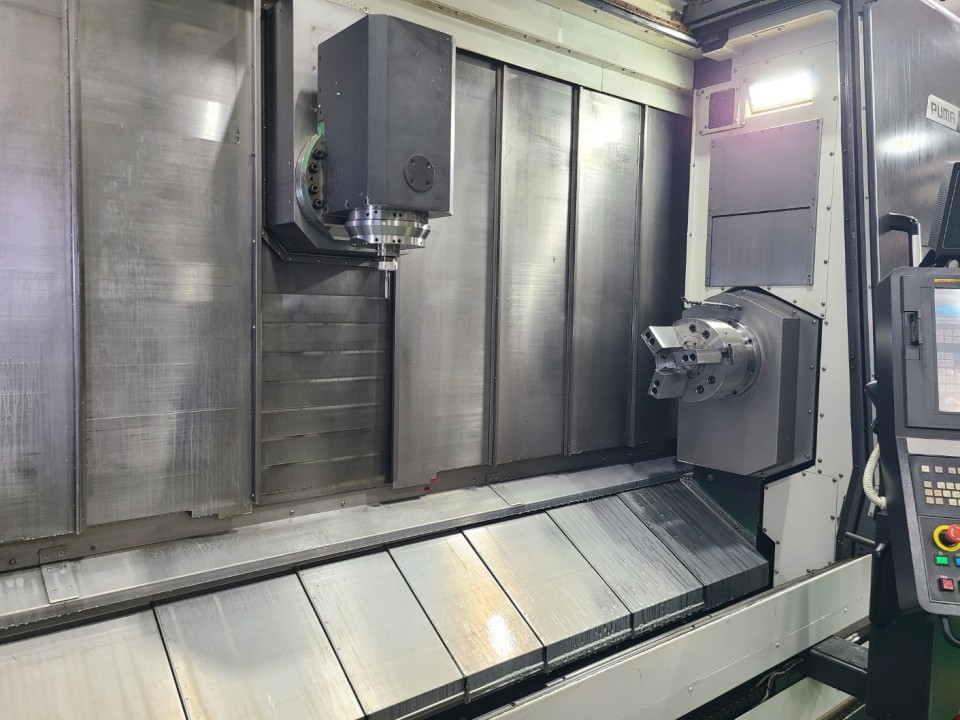

• Milling spindle : 12,000 rpm CAPTO C6

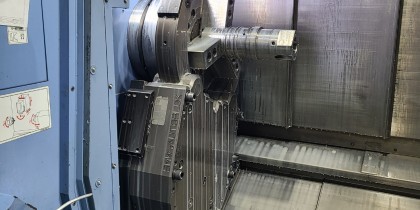

• 15” chuck/left, 12” chuck/right
• 80 tool ATC
• Scales for XYZ axis
• SMW hyd rest 100~410mm
• Chip conveyor

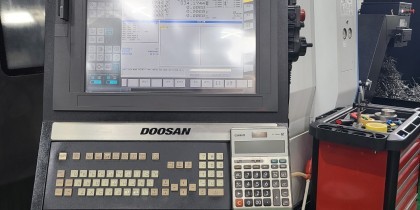

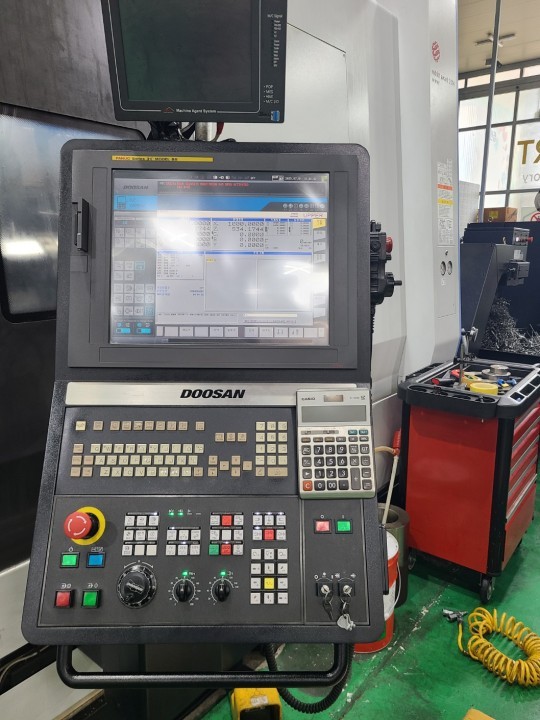

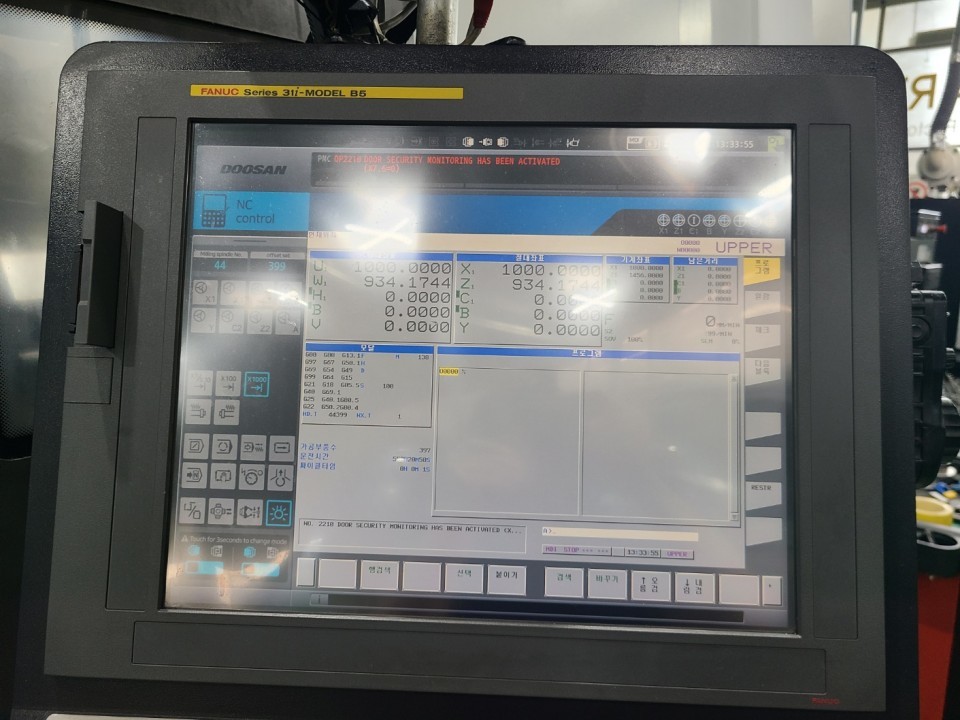

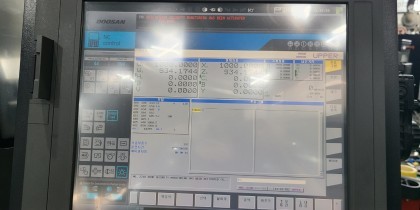

• Fanuc 31- B5 control

Location: South Korea CIF
