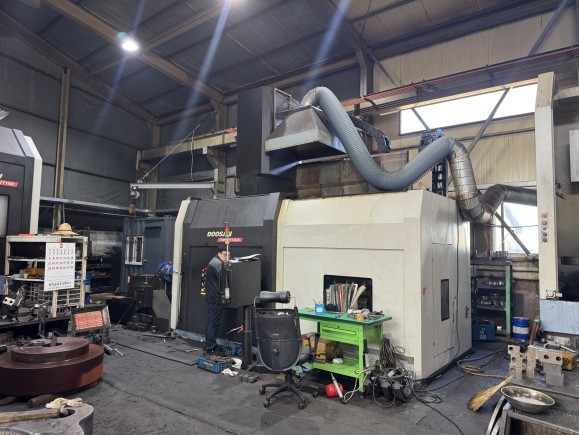

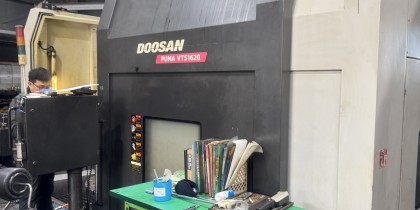

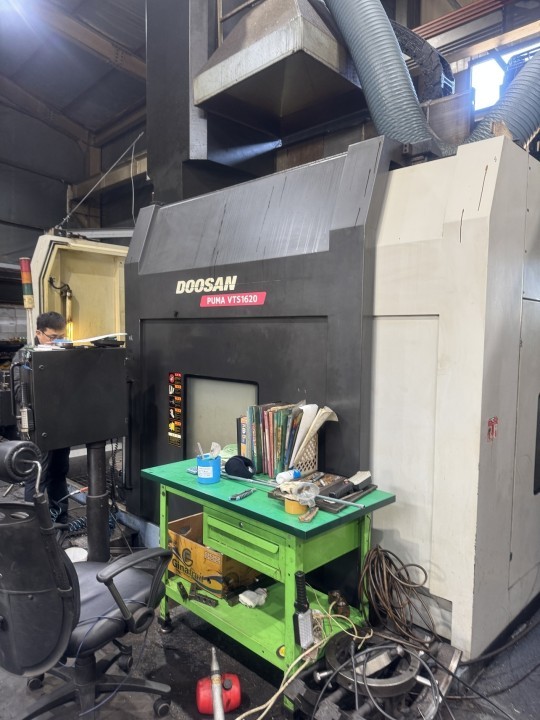

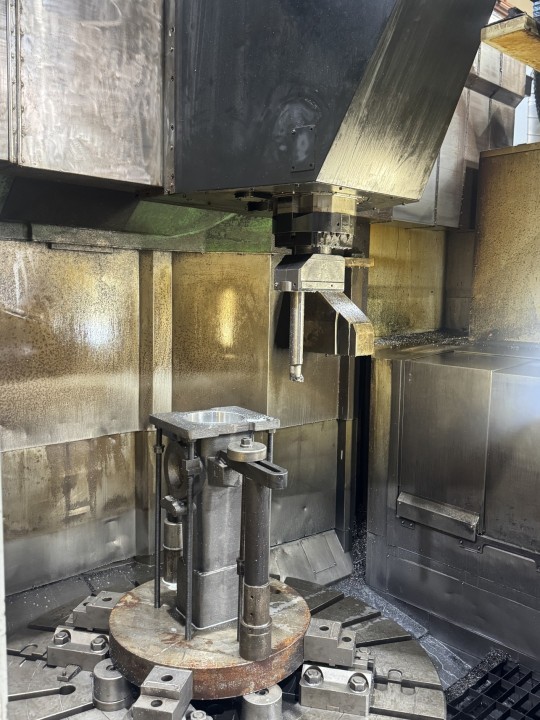

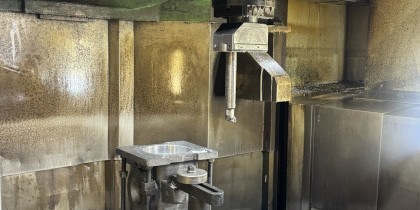

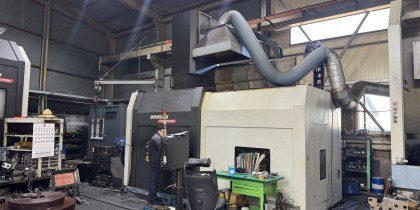

2013 Doosan VTS-1620 CNC Vertical Lathe

2013  Doosan VTS-1620 CNC Vertical Lathe

The 2013 Doosan VTS-1620 CNC Vertical Lathe is a robust machine designed for heavy-duty turning of large components. It features a 1,600 mm manual chuck table with a 10,000 kg load capacity and a maximum swing of 2,000 mm. The X/Z travels of –127 to 1,600 mm and 960 mm Z-axis provide excellent machining range, supported by a 308 x 250 mm ram and a 37.5/45 kW motor. Equipped with an 18-position ATC, two tool holders, tool presetter, manual guide i, chip conveyor, and reliable Fanuc control, it offers precision and productivity for demanding applications.

Key Specification

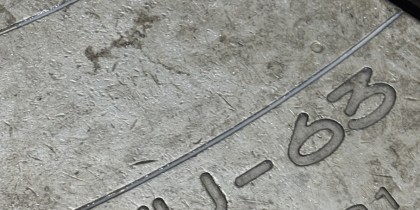

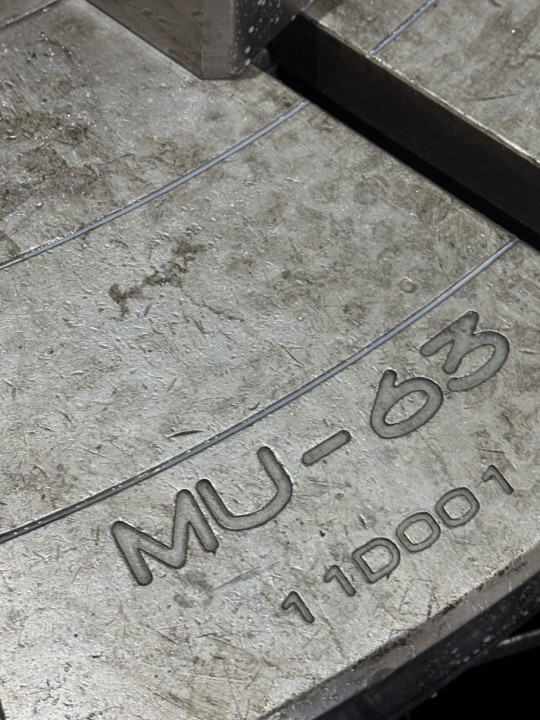

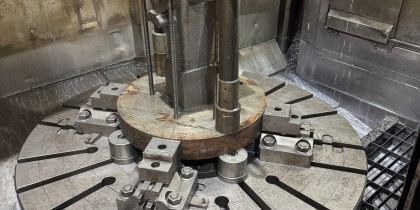

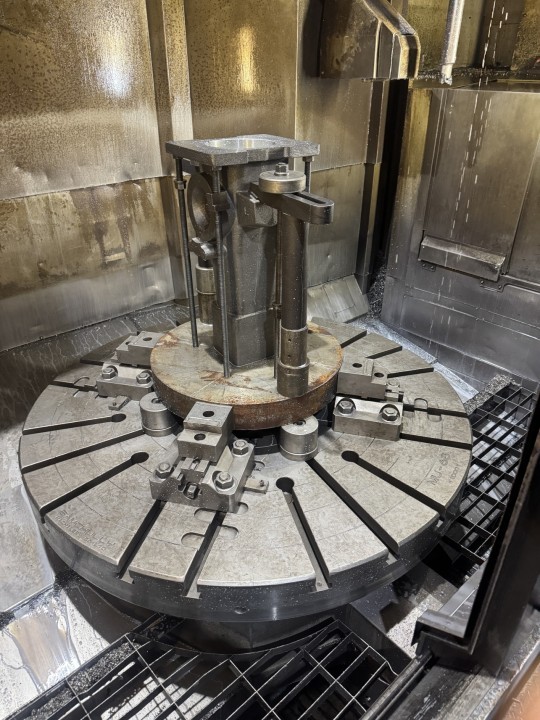

• Table : 1600mm manual chuck/10,000 kg load
• Table speed : 250 rp
• Max swing : 2000mm
• X/Z : -127 ~ 1600mm
• Z : 960mm

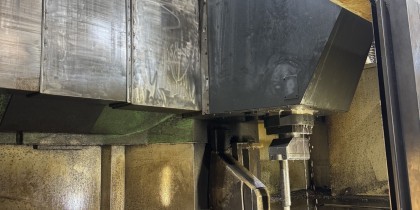

• Ram size : 308x250mm
• 37.5/45 kw motor
• 18 position ATC
• 2 tool holders
• Tool presetter
• Manual guide i
• Chip conveyor

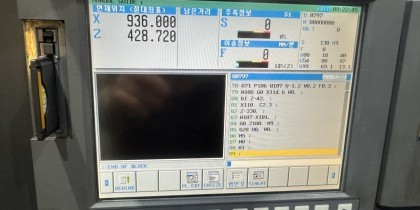

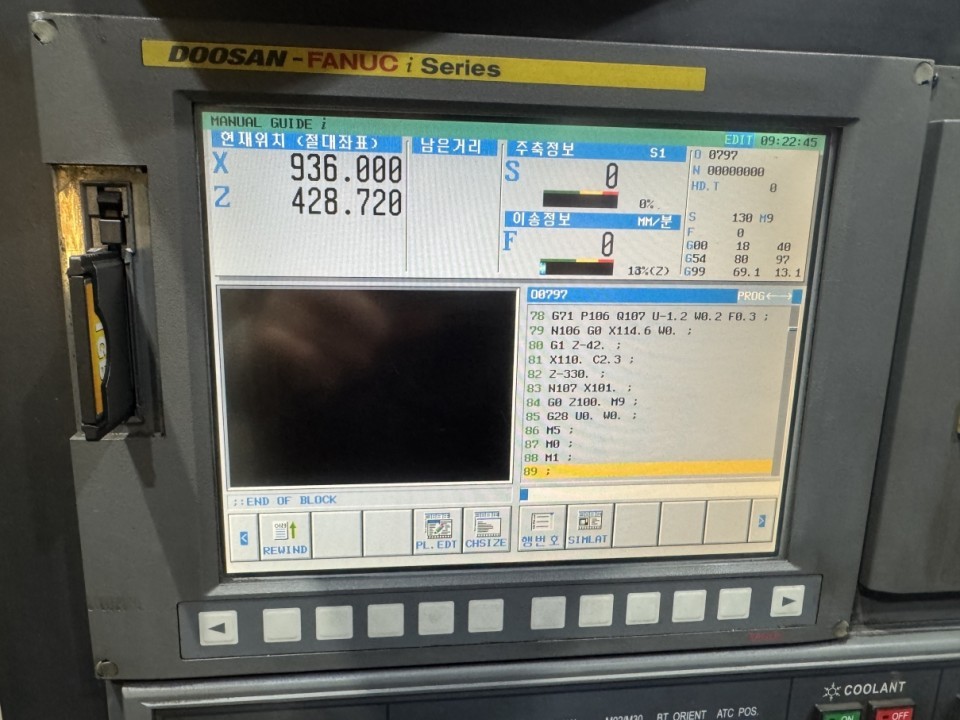

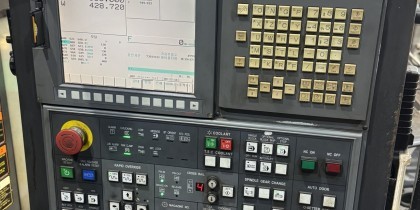

• Fanuc control

Location: South Korea CIF
