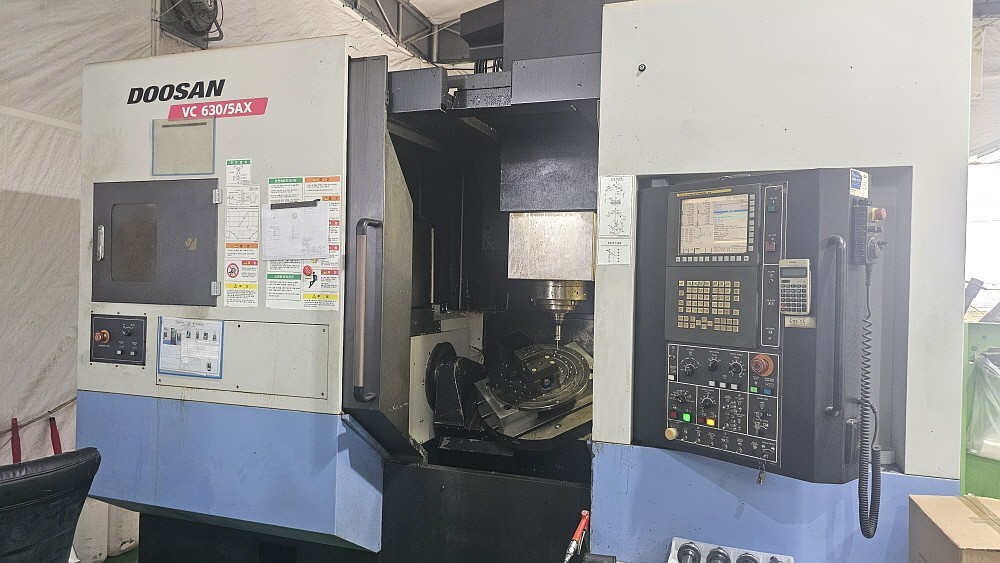

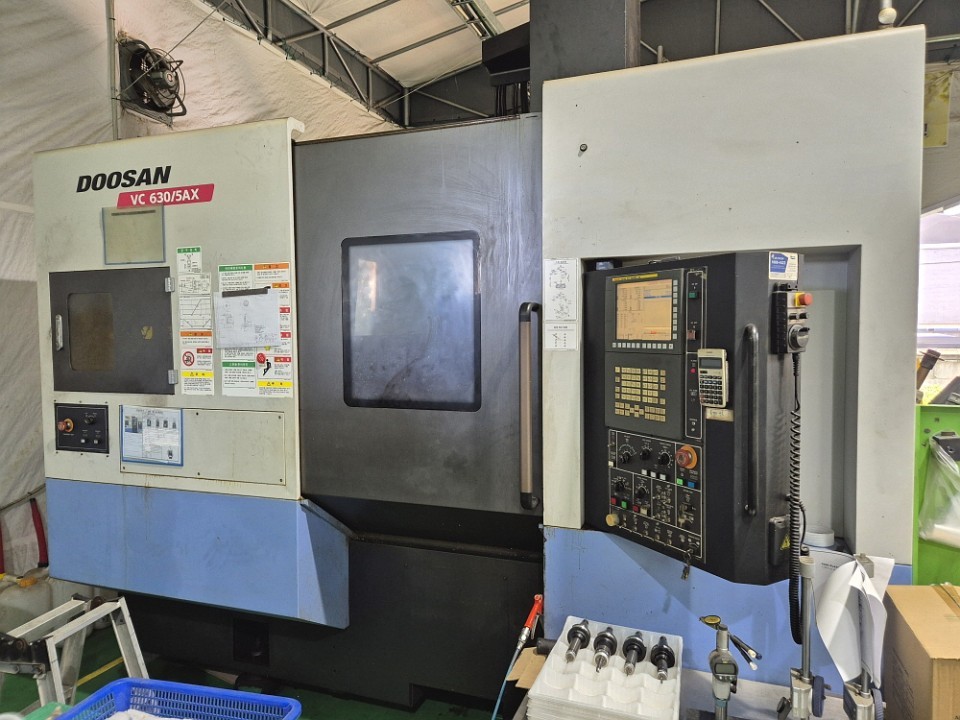

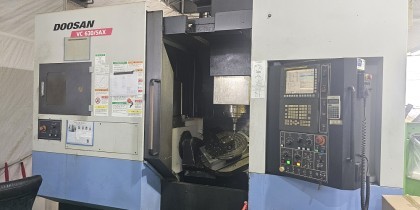

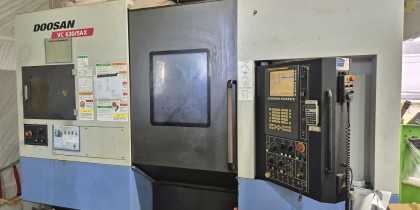

2013 Doosan VC630 5AX 5 axis machine

2013 Doosan VC630 5AX 5 axis machine

The 2019 Doosan HM1250 Horizontal Machining Centre is a high-capacity, precision machine built for demanding production environments. It features a robust BT50 taper with a 6,000 rpm spindle and spindle-through coolant for efficient cutting performance. The twin 1,250 x 1,250 mm pallets with 1-degree indexing support continuous machining, while generous X, Y and Z travels of 2,100 x 1,500 x 1,500 mm allow for large components. Equipped with a 60-tool ATC, chip conveyor and reliable Fanuc control, this machine delivers productivity and accuracy.

Key Specification

• Spindle speed : 20,000 rpm

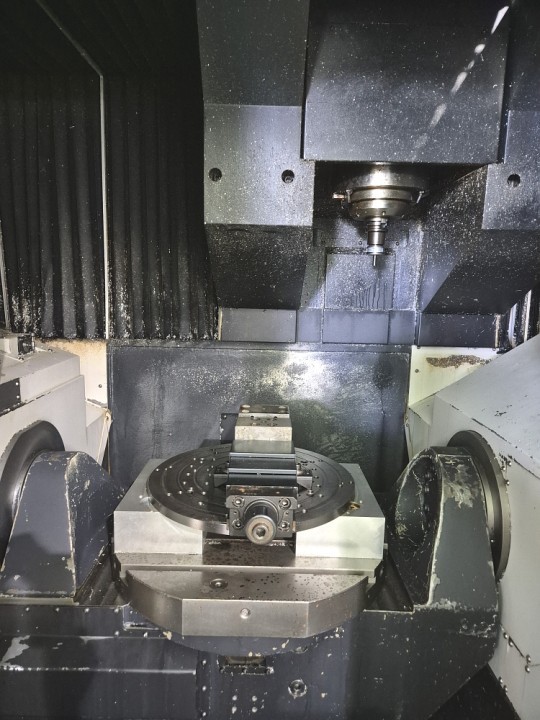

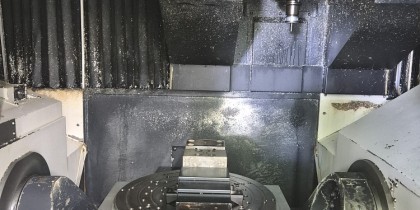

• Table size : 630mm dia/500 kg load
• XYZAC : 650x965x520mm x +30-120/360 degree
• 40 tool ATC

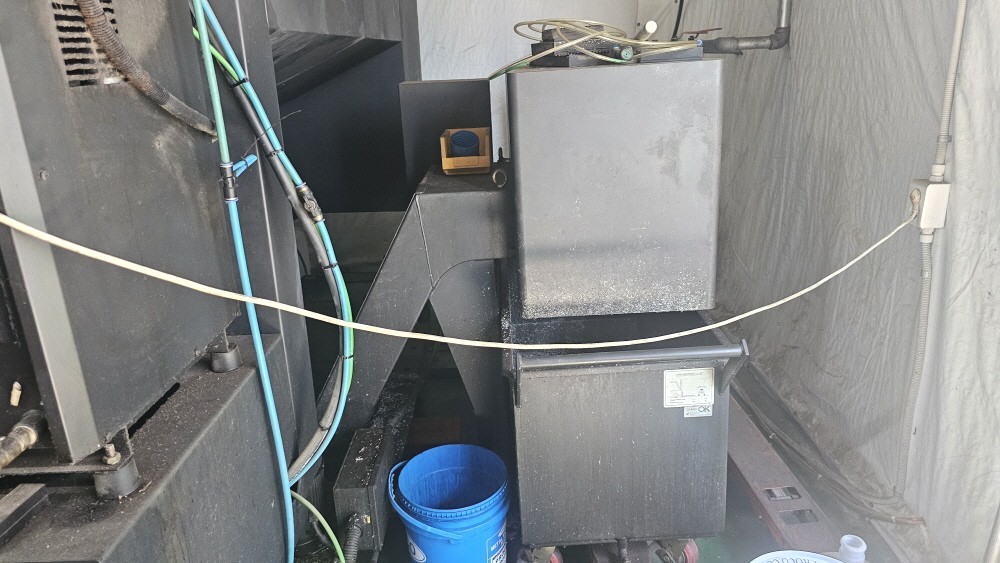

• Chip conveyor

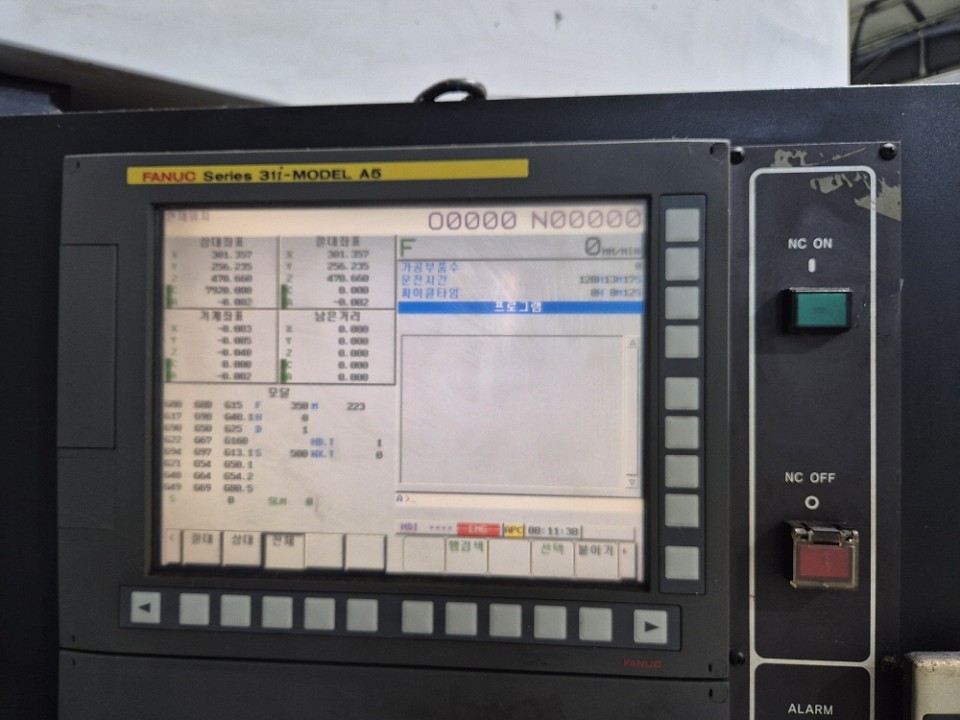

• Fanuc 31i-A5 control

Location: South Korea CIF
