2013 Doosan DBC-130II CNC Borer with 2 pallets

2013 Doosan DBC-130II CNC Borer with 2 pallets

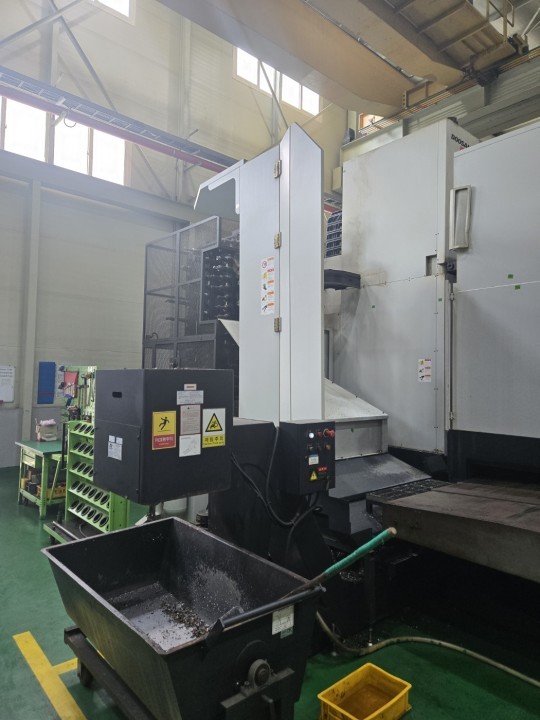

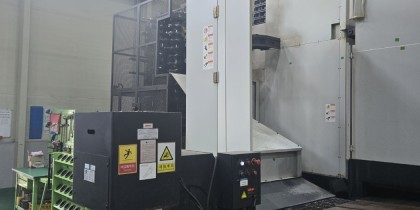

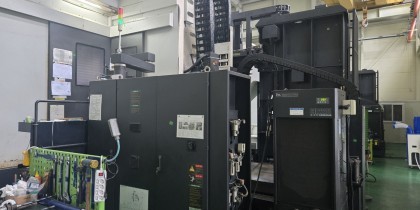

The 2013 Doosan DBC-130II is a powerful CNC borer equipped with two 1600 x 1600 mm pallets featuring 0.001° indexing. It offers large travels of 3000 x 2250 x 2000 x 700 mm, supported by a 250 mm rising block on the Y-axis. The 130 mm BT50 spindle runs at 2,500 rpm and is driven by a 22/26 kW motor, with 70-bar through-spindle coolant for demanding cuts. With XYZ scales, a 90-tool ATC, full enclosure, chip conveyor, and Fanuc 31iA control, it delivers accuracy, capacity, and efficient workflow for heavy machining.

Key Specifications

• Spindle dia : 130mm
• BT 50 taper

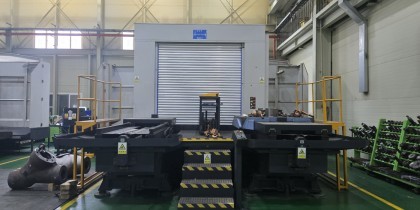

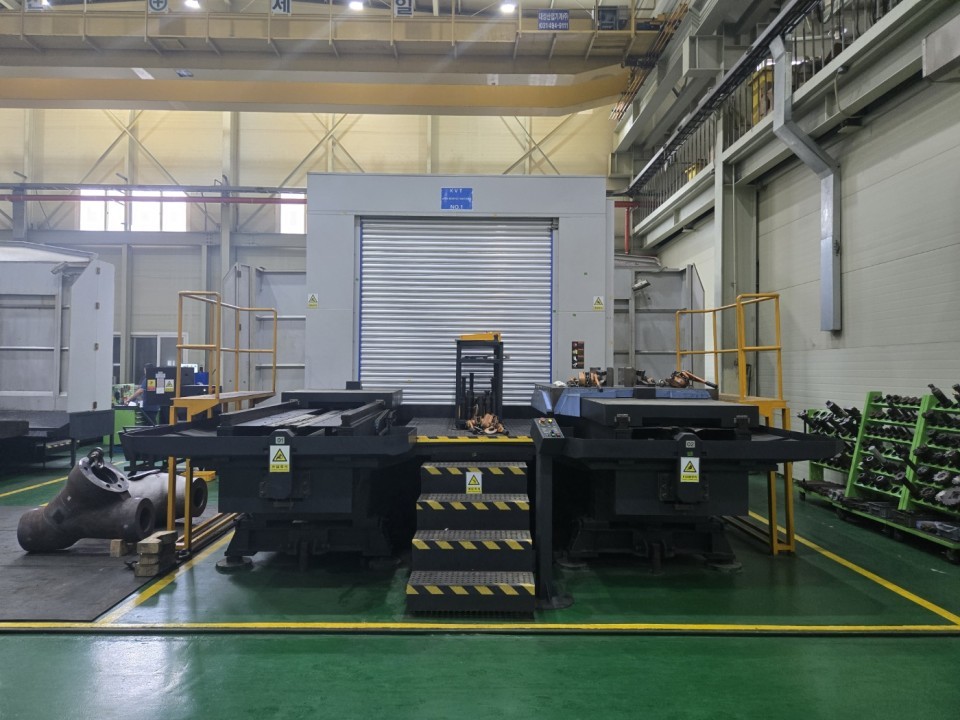

• Pallet: 1600x1600mm/2 pallets/0.001 degree index
• XYZW : 3000x2250x2000x700mm (250mm rising block for column)
• 2500 rpm spindle
• 22/26kw motor
• Scales on XYZ axis

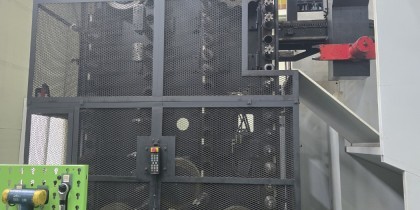

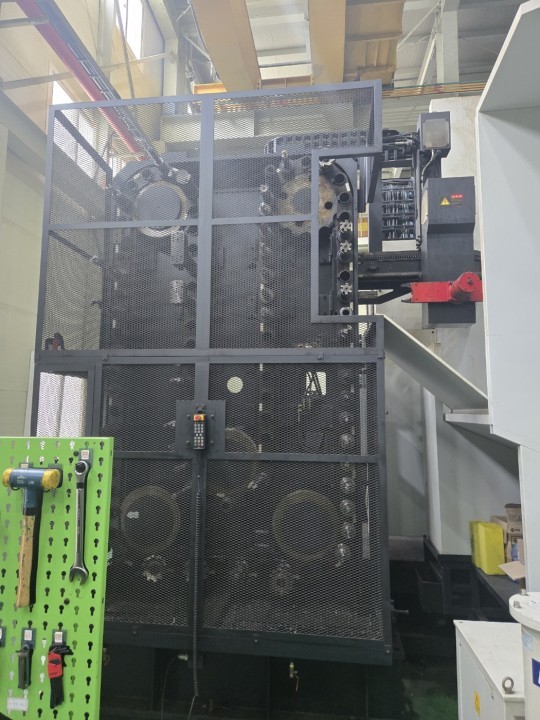

• 90 tool ATC

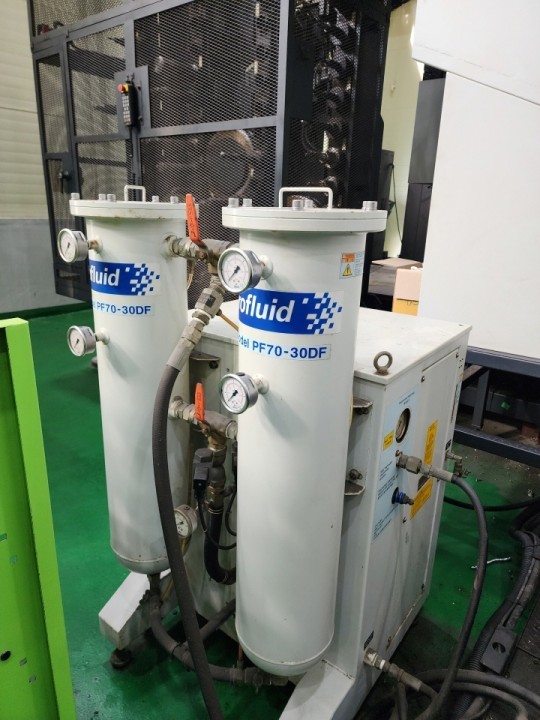

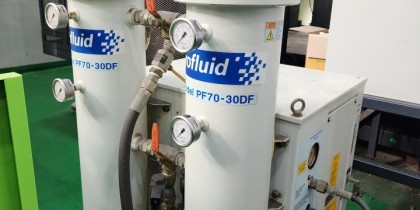

• 70 bar Sindle thru coolant
• Full cover
• chip conveyor

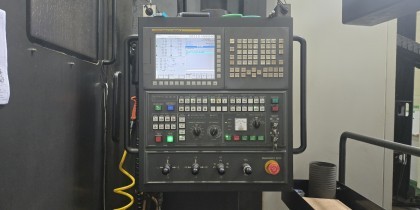

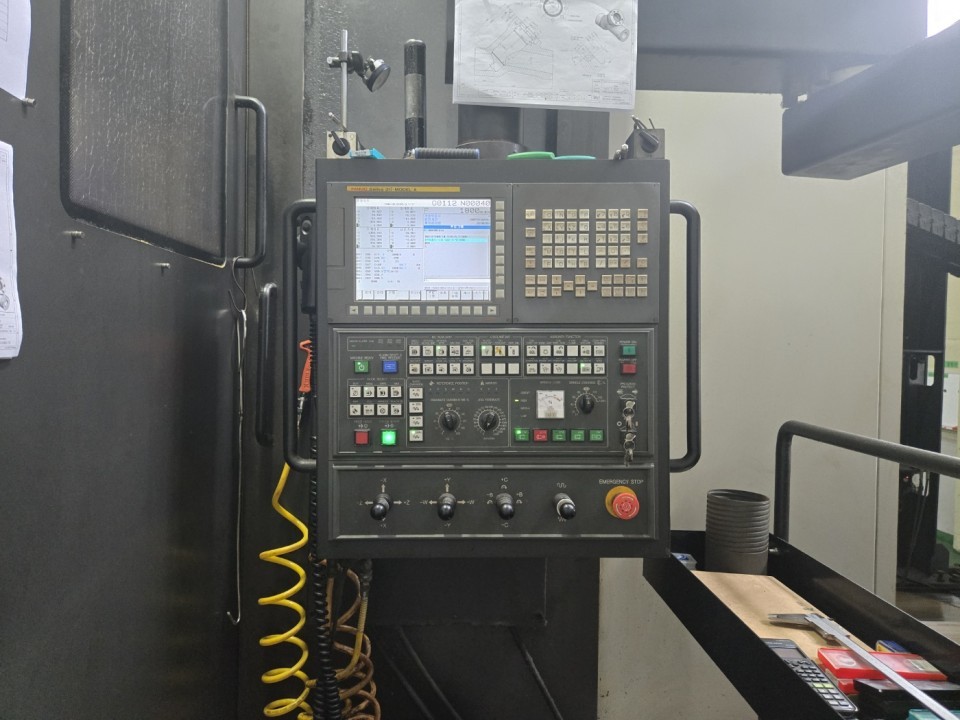

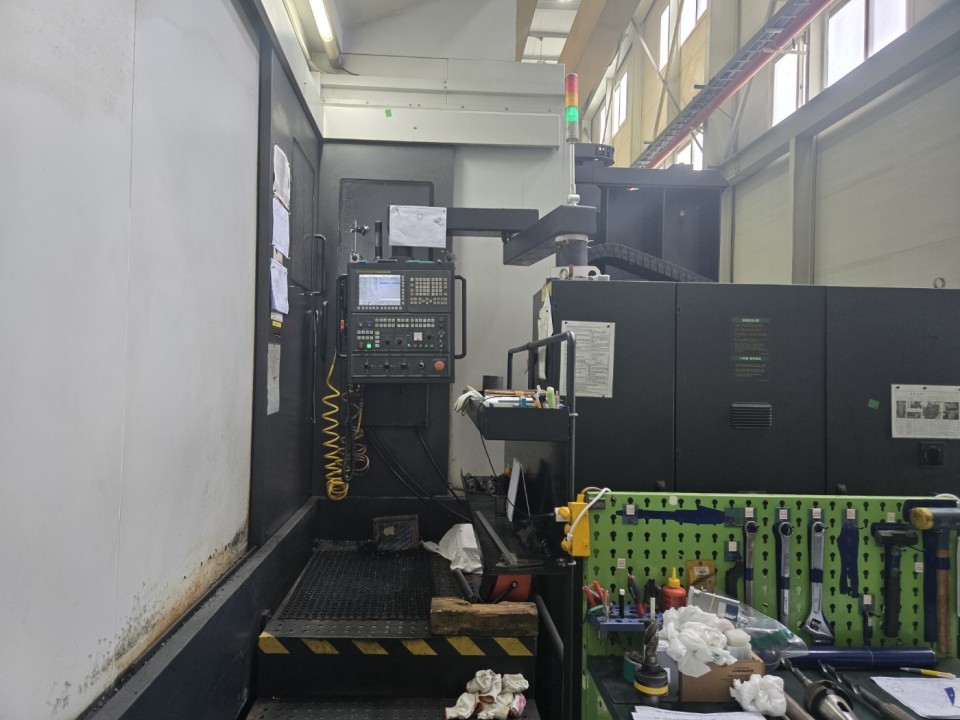

• Fanuc 31iA controller
• Y axis travel : 2250mm (rising block 250mm on Y axis)
• Scales on XYZ axis

Located in South Korea CIF
