2010 Hyundai Wia KBN-135 CNC Table Type Boring Machine

2010 Hyundai Wia KBN-135 CNC Table Type Boring Machine

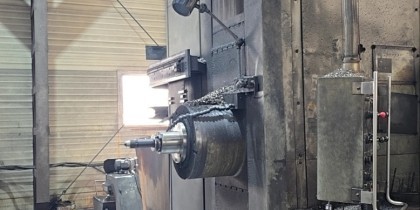

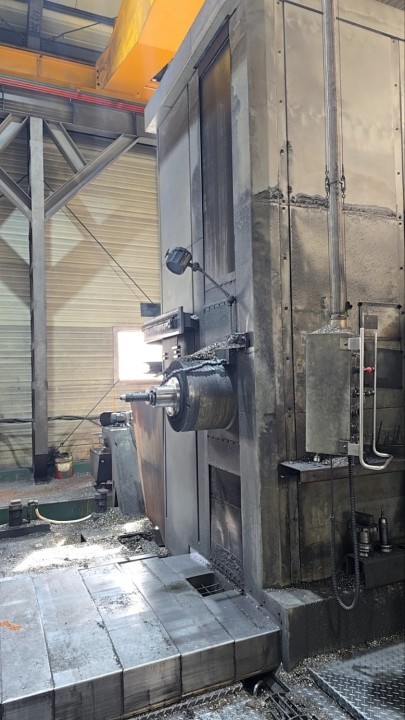

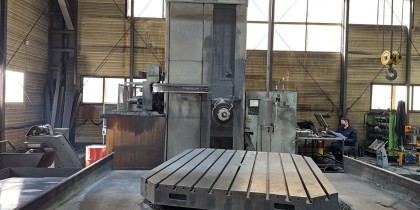

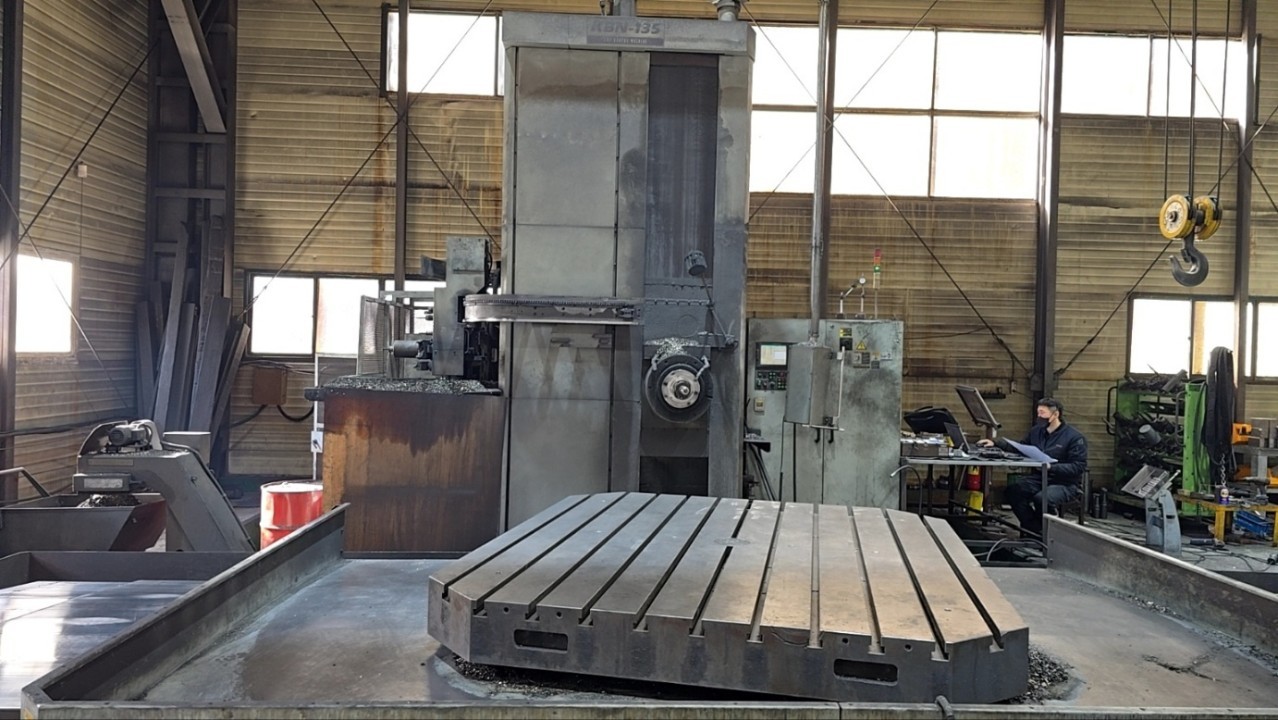

The 2010 Hyundai Wia KBN-135 CNC Table Type Boring Machine is a heavy-duty, high-precision machine designed for large component machining. It features a 135 mm spindle with BT50 taper and a 1,800 x 2,000 mm table capable of a 10,000 kg load with 0.001° indexing. Generous X, Y, Z and W travels of 3,000 x 2,000 x 1,600 x 700 mm and a 2,000 rpm spindle driven by an 18.5/22 kW motor ensure robust performance. Equipped with XYZ scales, 60-tool ATC, chip conveyor and Fanuc 16iMB control, it delivers accuracy, efficiency, and reliable operation in demanding machining environments.

Key Specification

• Spindle dia : 135mm
• BT 50 taper
• Table : 1800x2000mm/0.001 degree index/10,000 kg load
• XYZW : 3000x2000x1600x700mm
• Spindle speed : 2000 rpm
• 18.5/22 kw motor
• Scales, XYZ

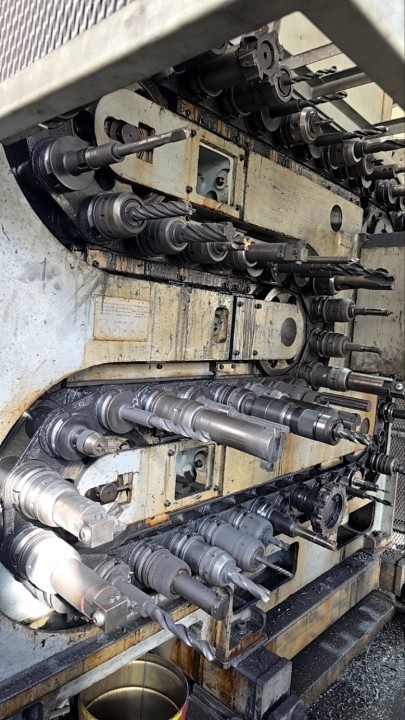

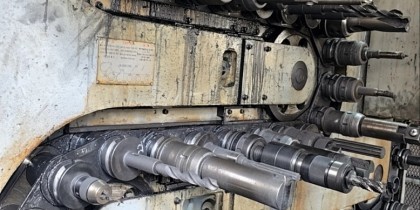

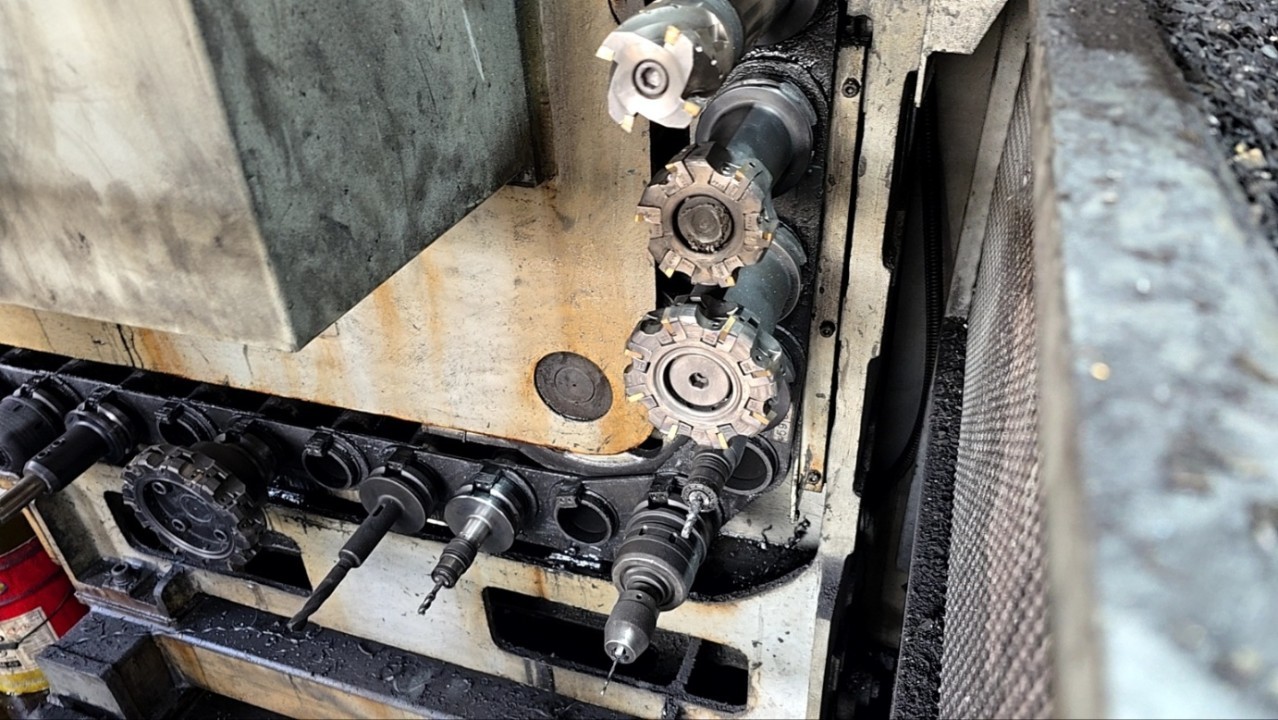

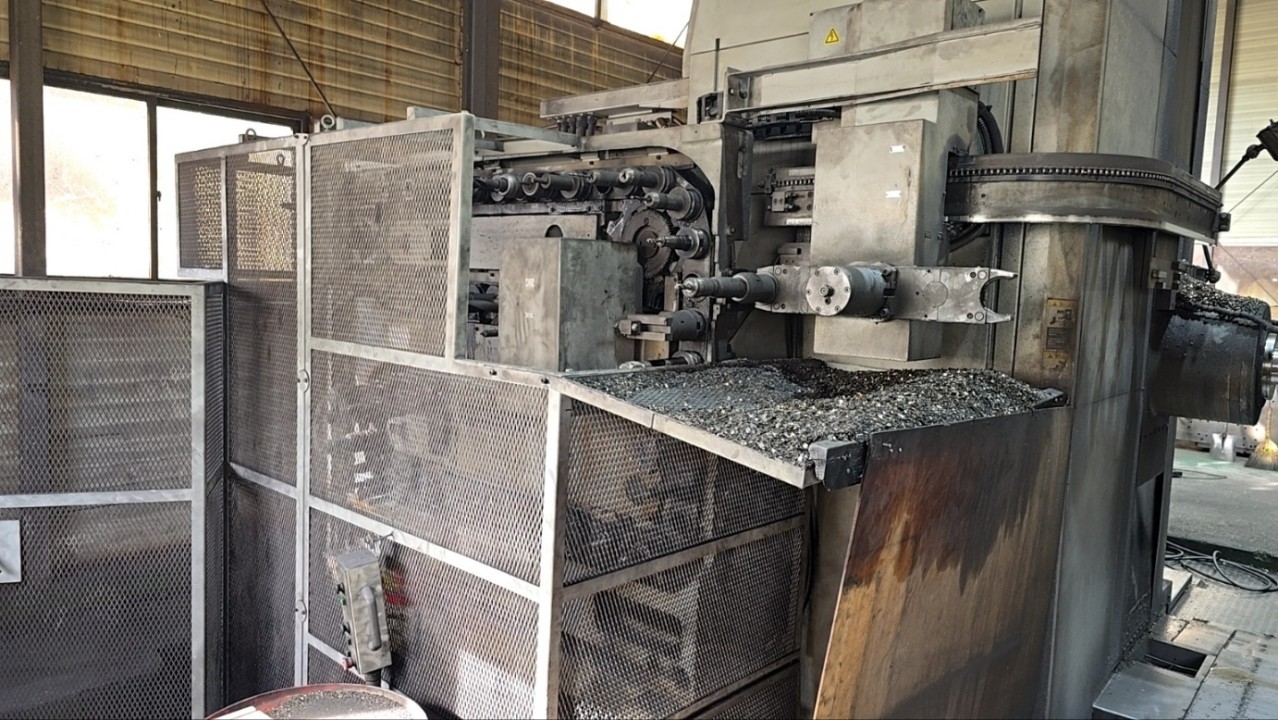

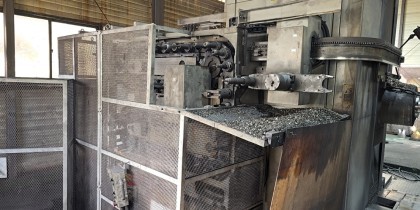

• 60 tool ATC
• Chip conveyor

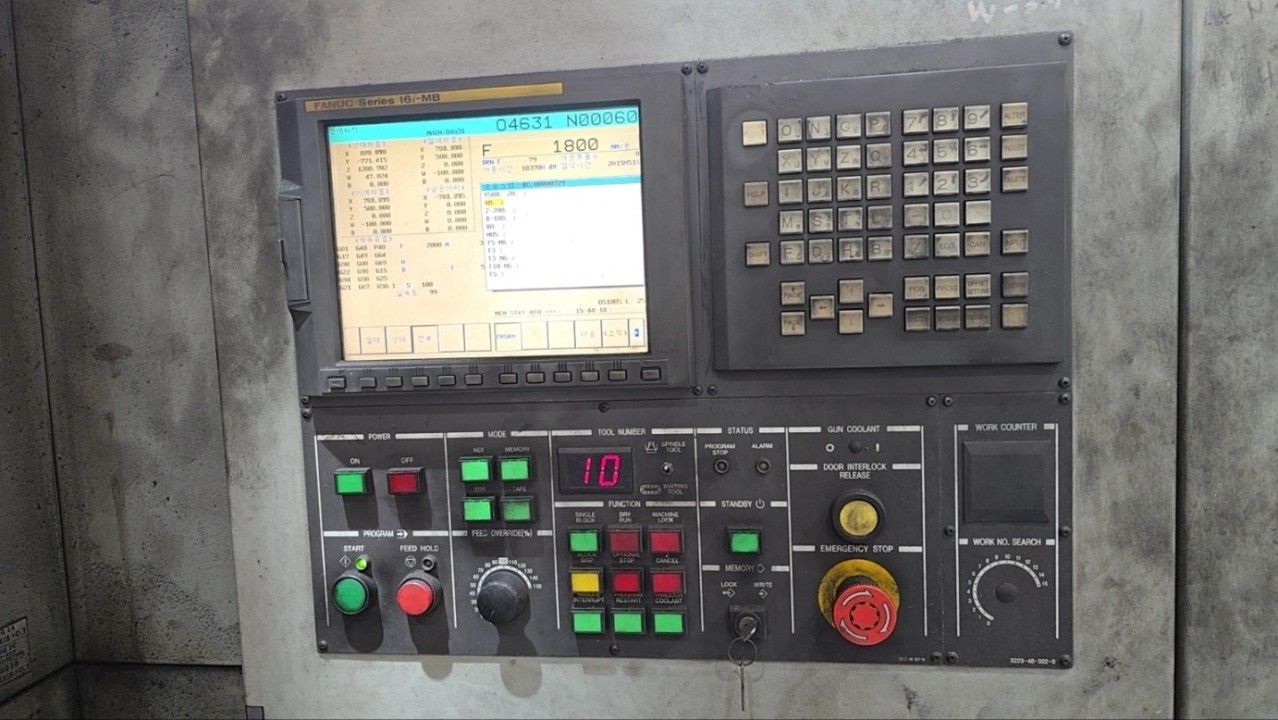

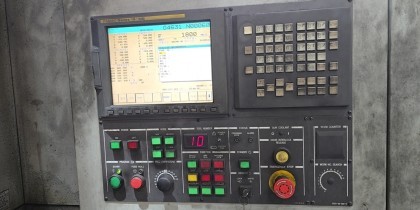

• Fanuc 16iMB control

Location: South Korea CIF
